027H2180

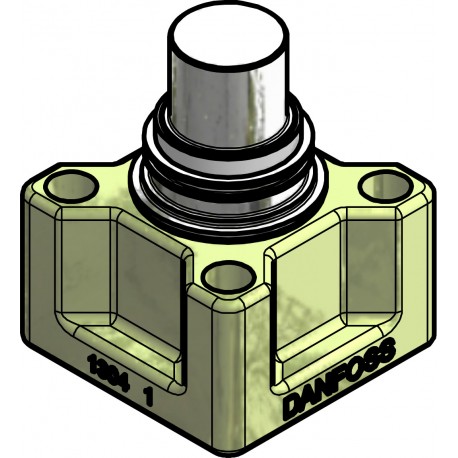

027H2180 DANFOSS REFRIGERATION Function module
$0.00USD
4798 in stock
Key Specifications
EAN ():5702428237635
Type ():ICM 25-A
Brand ():ICV Flexline
Volume ():3.329 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428237635 |
| Type () | ICM 25-A |
| Brand () | ICV Flexline |
| Volume () | 3.329 Liter |
| Net weight () | 1.786 Kg |
| Serviceable () | ICM / ICS / ICLX spare parts |
| Gross weight () | 1.82 Kg |
| Refrigerants () | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R744R1234ze(E)R507AR1234yfR125R227eaR236faR245faR32R407HR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR513AR513BR515AR515BR516A |
| Body material () | Steel |
| Product group () | Press. and temp. regul. valves |
| Packing format () | Single pack |
| Parts included () | Bolts/O-ringSeat/O-ring |
| Actuator system () | ICAD motor, magnet coupling |
| Valve operation () | Motor operated |
| Kv value [m³/h] () | 6 m³/h |
| Used for product () | ICV 25 |
| Cv value [gal/min] () | 7 gal/min |
| EU RoHS compliance () | No - out of scope |
| Parts Program name () | ICM |
| Open/close time [s] () | 7 s |
| Product accessories () | ICAD accessoriesICM / ICS / ICLX accessories |
| Product description () | Function Module |
| Manual operation option () | Via ICAD settingVia Multifunction tool |
| Product Name Description () | Function module |
| Used for product comments () | With top assembly |
| Outlet connection size [mm] () | 25 mm |
| Quantity per packing format () | 1 pc |
| REACH Candidate List substances () | No |
| In scope of WEEE and contain batteries () | No |
Product Description
ICM 25A Functionmodule
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Kv value [m³/h]: 6.000, Used for product: ICV 25
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
