027H2128

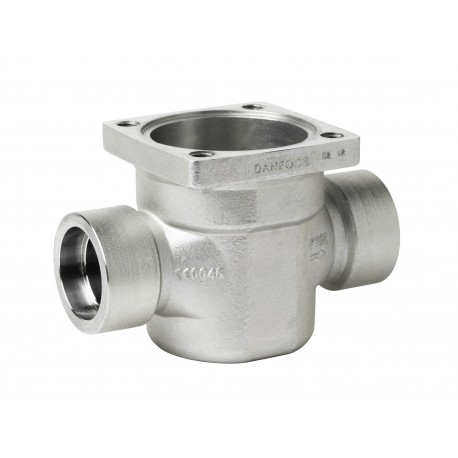

027H2128 DANFOSS REFRIGERATION Multifunction valve body
$0.00USD
4652 in stock
Key Specifications
EAN ():5702428242950
Type ():ICV 25
Brand ():ICV Flexline
Volume ():3.467 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428242950 |
| Type () | ICV 25 |
| Brand () | ICV Flexline |
| Volume () | 3.467 Liter |
| Approval () | EAC |
| Net weight () | 1.496 Kilogram |
| Serviceable () | ICM / ICS / ICLX spare parts |
| Gross weight () | 1.744 Kilogram |
| Refrigerants () | R113R114R1233zd(E)R1234yfR1234ze(E)R125R1270R1336mzz(Z)R134aR152aR170R22R227eaR23R236faR290R32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR454BR455AR502R503R513AR600R600aR717R744RE170R507AR1150R245faR413AR442AR447BR452BR454AR454CR463AR512AR513BR515AR515BR516AR508B |
| Body material () | Steel |
| Product group () | Multifunction valves |
| Packing format () | Single pack |
| Connection type () | Butt weld |
| Valve operation () | Function module |
| Used for product () | ICM 25ICS 25 |
| EU RoHS compliance () | Out of scope |
| Parts Program name () | ICLXICMICS |
| UK RoHS compliance () | Out of scope |
| Connection material () | Steel |
| Connection standard () | EN 10220 |
| Product accessories () | ICM / ICS / ICLX accessories |
| Connection size [in] () | 3/4 in |
| Connection size [mm] () | 20 mm |
| China RoHS compliance () | Out of scope |
| Flow direction indicator () | Embossed 1-way arrow |
| Product Name Description () | Multifunction valve body |
| Max. Working Pressure [bar] () | 65 bar |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 943 psig |
| Temperature range [°C] [max] () | 120 °C |
| Temperature range [°C] [min] () | -60 °C |
| Temperature range [°F] [max] () | 248 °F |
| Temperature range [°F] [min] () | -76 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
ICV 25 20 DIN Valve housing
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Connection type: Butt weld, Connection size [mm]: 20, Used for product: ICS 25; ICM 25
