027H2076

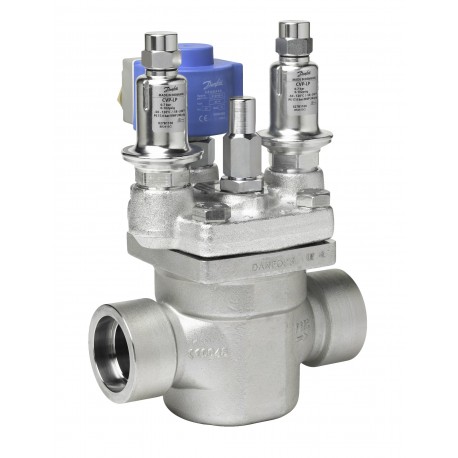

027H2076 DANFOSS REFRIGERATION Pilot operated servo valve, ICS3 25-5
$0.00USD
4864 in stock
Key Specifications
EAN:5702428236560
Brand:ICV Flexline
Category:Art. 3, par. 3
Direction:Straightway
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428236560 |
| Brand | ICV Flexline |
| Category | Art. 3, par. 3 |
| Direction | Straightway |
| Top cover | 3 function modules |
| Net weight | 4 Kg |
| Fluid Group | I |
| Serviceable | ICM / ICS / ICLX spare parts |
| Gross weight | 4.51 Kg |
| Product name | Pilot operated servo valve |
| Product type | ICS3 25-5 |
| Refrigerants | R1234zeR134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R507R717R744 |
| Body material | Steel |
| Product Group | Press. and temp. regul. valves |
| Valve version | Standard version |
| Packing format | Single pack |
| Surface coating | Zn (TLP) |
| Valve operation | Pilot operated |
| Kv value [m³/h] | 1.7 m3/h |
| Cv value [gal/min] | 2 gal/min |
| Parts Program name | ICS |
| Connection material | Steel |
| Connection standard | ASME B 16.22 |
| Further information | Coils not included |
| Product accessories | ICM / ICS / ICLX accessories |
| Product description | Servo operated valve |
| Inlet connection type | Soldering |
| Opening configuration | Closed (delta p=0 bar)Full open (delta p≥0.2 bar) |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| Outlet connection type | Soldering |
| Manual operation option | Manual open spindle |
| Flow direction indicator | Embossed 1-way arrow |
| Pressure gauge connection | Int. thread with blind plug |
| Inlet connection size [in] | 1 1/8 in |
| Inlet connection size [mm] | 28 mm |
| Max. Working Pressure [bar] | 52 bar |
| Outlet connection size [in] | 1 1/8 in |
| Outlet connection size [mm] | 28 mm |
| Quantity per packing format | 1 pc |
| Max. Working Pressure [psig] | 754 psig |
| Ext pilot pressure connection | Weld nipple (P2 Port) |
| Temperature range [°C] [Max] | 120 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 248 °F |
| Temperature range [°F] [Min] | -76 °F |
| Pilot connection configuration | P: Parallel connectionSI-SII: Serial connection |
Product Description
Pilot servo operated valve, ICS3 25-5, 28.0 mm, Welding
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
