027H2015

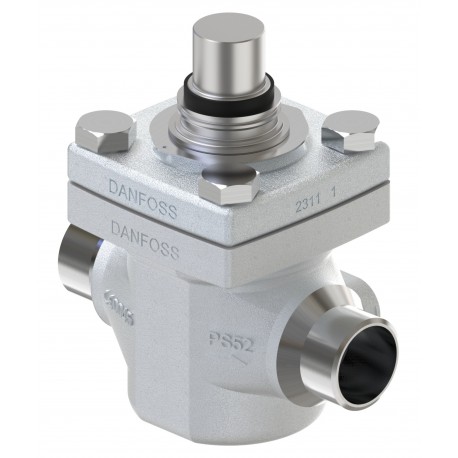

027H2015 DANFOSS REFRIGERATION Motor operated valve, ICM 25-B
$0.00USD
3924 in stock
Key Specifications
EAN ():5702428237031
Type ():ICM 25-B
Brand ():ICV Flexline
Volume ():8.68 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428237031 |
| Type () | ICM 25-B |
| Brand () | ICV Flexline |
| Volume () | 8.68 Liter |
| Approval () | EACLLC CDC TYSKTÜVUL |
| Direction () | Straightway |
| Top cover () | Actuator |
| Net weight () | 3.284 Kg |
| Fluid Group () | 1 |
| Serviceable () | ICM / ICS / ICLX spare parts |
| Gross weight () | 3.588 Kg |
| MaxOPD [bar] () | 52 bar |
| PED category () | Art. 3, par. 3 |
| Refrigerants () | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R744R1234ze(E)R507AR1234yfR125R227eaR236faR245faR32R407HR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR513AR513BR515AR515BR516A |
| Body material () | Steel |
| MaxOPD [psig] () | 702 psig |
| Product group () | Press. and temp. regul. valves |
| Valve version () | Standard version |
| Packing format () | Single pack |
| Actuator system () | ICAD motor, magnet coupling |
| Surface coating () | Zn (TLP) |
| Valve operation () | Motor operated |
| Kv value [m³/h] () | 12 m³/h |
| Cv value [gal/min] () | 13.92 gal/min |
| Parts Program name () | ICM |
| Connection material () | Steel |
| Connection standard () | ASME B 16.22 |
| Open/close time [s] () | 7 s |
| Product accessories () | ICAD accessoriesICM / ICS / ICLX accessories |
| Product description () | Motor operated valve |
| Inlet connection type () | Soldering |
| Oil free refrigerants () | R1234ze(E)R134a |
| UL approval file name () | REFRIGERANT VALVE 53R0 |
| Outlet connection type () | Soldering |
| Manual operation option () | Via ICAD settingVia Multifunction tool |
| Flow direction indicator () | Embossed 1-way arrow |
| Lubricants compatibility () | Oilfree applications |
| Product Name Description () | Motor operated valve |
| Inlet connection size [in] () | 1 3/8 in |
| Inlet connection size [mm] () | 35 mm |
| Max. Working Pressure [bar] () | 65 bar |
| Outlet connection size [in] () | 1 3/8 in |
| Outlet connection size [mm] () | 35 mm |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 943 psig |
| Temperature range [°C] [max] () | 120 °C |
| Temperature range [°C] [min] () | -60 °C |
| Temperature range [°F] [max] () | 248 °F |
| Temperature range [°F] [min] () | -76 °F |
| REACH Candidate List substances () | No |
| In scope of WEEE and contain batteries () | No |
Product Description
ICM 25-B1 3/8 SA
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Outlet connection size [mm]: 35.0, Inlet connection size [mm]: 35.0, Inlet connection type: Soldering, Outlet connection type: Soldering, Kv value [m³/h]: 12.000
