027F3057

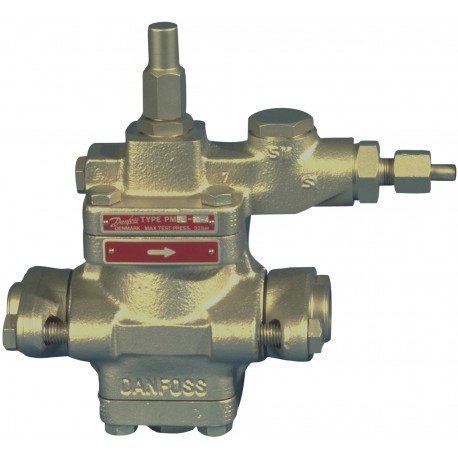

027F3057 DANFOSS REFRIGERATION Liquid level regulating valve, PMFL 80-4
$0.00USD
4317 in stock
Key Specifications
EAN ():5702422171874
Type ():PMFL 80-4
Volume ():8.68 Liter
Approval ():CEEACLLC CDC TYSKULUKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702422171874 |
| Type () | PMFL 80-4 |
| Volume () | 8.68 Liter |
| Approval () | CEEACLLC CDC TYSKULUKCA |
| Net weight () | 6.994 Kg |
| Fluid Group () | 1 |
| Colour Paint () | Cr3 / TLP |
| Gross weight () | 6.994 Kg |
| PED category () | Art. 3, par. 3 |
| Refrigerants () | R134aR22R404AR407AR407BR407CR407FR410AR502R717R401AR402AR409AR421AR507A |
| Product group () | Liquid level regulating valves |
| Packing format () | Single pack |
| Parts included () | Blanking plugFlange boltsFlange gasketsPilot connector |
| SCIP dossier no. () | b9a4d397-4040-40d8-bf76-2fbd22ec1ba4 |
| EU RoHS compliance () | No - out of scope |
| Product description () | Liquid Level Control |
| UL approval file name () | REFRIGERANT VALVE 53R0 |
| Product Name Description () | Liquid level regulating valve |
| Inlet connection size [mm] () | 25 mm |
| Max. Working Pressure [bar] () | 28 bar |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 406 psig |
| Temperature range [°C] [max] () | 120 °C |
| Temperature range [°C] [min] () | -60 °C |
| Temperature range [°F] [max] () | 248 °F |
| Temperature range [°F] [min] () | -76 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection size [mm]: 25.0, Max. Working Pressure [bar]: 28.0, Temperature range [°C]: -60 - 120
