027B2026

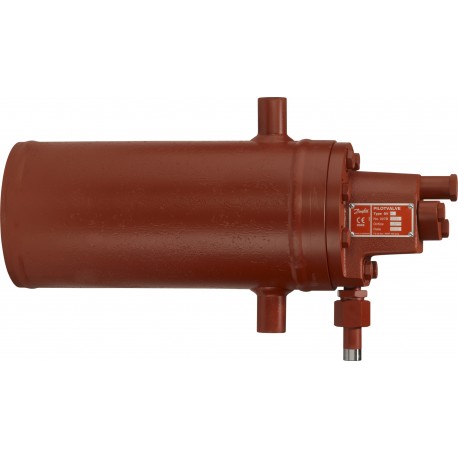

027B2026 DANFOSS REFRIGERATION Float valve
$0.00USD
3647 in stock
Key Specifications
EAN ():5702422148159
Type ():SV 6
Volume ():69.3 Liter
Approval ():CEEACLLC CDC TYSKULUKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702422148159 |
| Type () | SV 6 |
| Volume () | 69.3 Liter |
| Approval () | CEEACLLC CDC TYSKULUKCA |
| Net weight () | 24.5 Kg |
| Fluid Group () | 12 |
| Gross weight () | 25.75 Kg |
| PED category () | II |
| Refrigerants () | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R507AR717 |
| Body material () | Steel |
| Product group () | Liquid level regulating valves |
| Packing format () | Single pack |
| Kv value [m³/h] () | 0.43 m³/h |
| SCIP dossier no. () | d8b0f6a1-728a-40b2-874a-789152b4342b |
| Cv value [gal/min] () | 0.5 gal/min |
| EU RoHS compliance () | No - out of scope |
| Connection material () | Steel |
| Product description () | Float Valve |
| Float housig material () | Steel |
| Rated capacity R22 [TR] () | 10.89 TR |
| Rated capacity R22 [kW] () | 38.3 kW |
| Product Name Description () | Float valve |
| Rated capacity R717 [TR] () | 52.9 TR |
| Rated capacity R717 [kW] () | 186 kW |
| Rated capacity R134a [TR] () | 8.5 TR |
| Rated capacity R134a [kW] () | 29.9 kW |
| SCIP dossier product name () | SV |
| Pilot line connection type () | Welding |
| Rated cap. conditions [SI] () | +5 °C/+32 °C, sub. Cooling 4 K |
| Max. Working Pressure [bar] () | 28 bar |
| Quantity per packing format () | 1 pc |
| Rated cap. R404A/R507A [TR] () | 7.99 TR |
| Rated cap. R404A/R507A [kW] () | 28.1 kW |
| Rated cap. conditions [IMP] () | +41 °F/+89,6 °F, sub. Cooling |
| Balance pipe Weld conn. size () | 1 in |
| Max. Working Pressure [psig] () | 406 psig |
| Temperature range [°C] [max] () | 120 °C |
| Temperature range [°C] [min] () | -50 °C |
| Temperature range [°F] [max] () | 248 °F |
| Temperature range [°F] [min] () | -58 °F |
| Differential pressure max[bar] () | 19 bar |
| Differential pressure max[psi] () | 276 psi |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
SV 6 Float Valve w/ tank
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Max. Working Pressure [bar]: 28.0, Temperature range [°C]: -50 - 120
