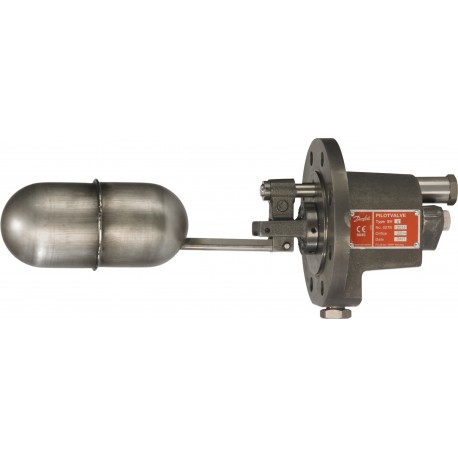

027B2015 DANFOSS REFRIGERATION Float valve
$0.00USD
4468 in stock
Key Specifications
EAN ():5702422161721
Type ():Spare parts
Volume ():19.15 Liter
Approval ():CEEACLLC CDC TYSKULUKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702422161721 |
| Type () | Spare parts |
| Volume () | 19.15 Liter |
| Approval () | CEEACLLC CDC TYSKULUKCA |
| Net weight () | 8.94 Kg |
| Fluid Group () | 12 |
| Gross weight () | 10.518 Kg |
| PED category () | II |
| Refrigerants () | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R507A |
| Product group () | Float exp. valve spare parts |
| Packing format () | Single pack |
| Kv value [m³/h] () | 0.31 m³/h |
| SCIP dossier no. () | f8fe2fb6-0750-4373-b03a-5b5988b72210 |
| Used for product () | SV 5 |
| Cv value [gal/min] () | 0.36 gal/min |
| EU RoHS compliance () | No - out of scope |
| Product description () | Float Valve |
| Rated capacity R22 [TR] () | 8.13 TR |
| Rated capacity R22 [kW] () | 28.6 kW |
| Product Name Description () | Float valve |
| Rated capacity R717 [TR] () | 39.2 TR |
| Rated capacity R717 [kW] () | 138 kW |
| Rated capacity R134a [TR] () | 6.34 TR |
| Rated capacity R134a [kW] () | 22.3 kW |
| SCIP dossier product name () | Four-way valve(1) |
| Pilot line connection type () | Welding |
| Rated cap. conditions [SI] () | +5 °C/+32 °C, sub. Cooling 4 K |
| Max. Working Pressure [bar] () | 28 bar |
| Quantity per packing format () | 1 pc |
| Rated cap. R404A/R507A [TR] () | 5.97 TR |
| Rated cap. R404A/R507A [kW] () | 21 kW |
| Rated cap. conditions [IMP] () | +41 °F/+89,6 °F, sub. Cooling |
| Balance pipe Weld conn. size () | 1 in |
| Max. Working Pressure [psig] () | 406 psig |
| Temperature range [°C] [max] () | 120 °C |
| Temperature range [°C] [min] () | -50 °C |
| Temperature range [°F] [max] () | 302 °F |
| Temperature range [°F] [min] () | -58 °F |
| Differential pressure max[bar] () | 21 bar |
| Differential pressure max[psi] () | 305 psi |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
SV 5 Float Valve w/o tank
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Product description: Float Valve, Used for product: SV 5
