027B1161

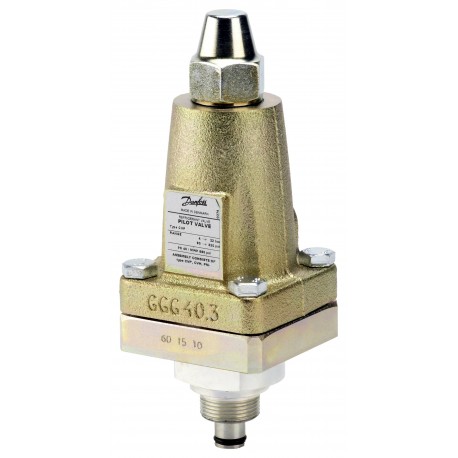

027B1161 DANFOSS REFRIGERATION Pilot valve
$0.00USD
4836 in stock
Key Specifications
EAN:5702422045069
Category:Art. 3, par. 3
Net weight:1.71 Kg
Fluid Group:I
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702422045069 |
| Category | Art. 3, par. 3 |
| Net weight | 1.71 Kg |
| Fluid Group | I |
| Gross weight | 1.77 Kg |
| Product name | Pilot valve |
| Product type | CVP-HP |
| Refrigerants | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R507R717R744 |
| Product Group | Press. and temp. regul. valves |
| Valve version | High pressure |
| Packing format | Multi pack |
| Kv value [m³/h] | 0.4 m3/h |
| Cv value [gal/min] | 0.46 gal/min |
| Product description | Constant-pressure pilot valve |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| Max. Working Pressure [bar] | 28 bar |
| Quantity per packing format | 6 pc |
| Max. Working Pressure [psig] | 406 psig |
| Pressure range [bar] Pe [Max] | 28 bar |
| Pressure range [bar] Pe [Min] | 4 bar |
| Temperature range [°C] [Max] | 120 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 248 °F |
| Temperature range [°F] [Min] | -58 °F |
| Pressure range [psig] Pe [Max] | 406 psig |
| Pressure range [psig] Pe [Min] | 58 psig |
Product Description
Pilot Valve, CVP-HP, Constant Pressure Pilot Valve
