027B112221

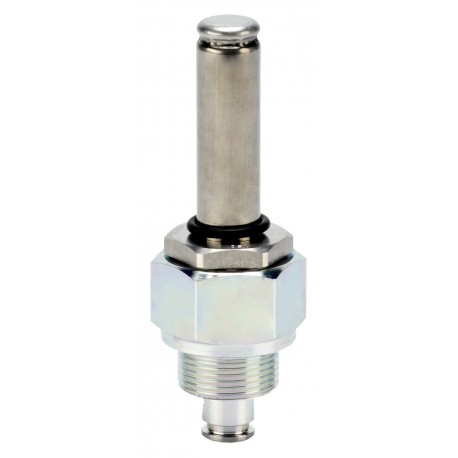

027B112221 DANFOSS REFRIGERATION EVM 110V60 PILOT VALVE
$241.00USD
74 in stock
Key Specifications
EAN ():5702428043755
Coil ():Yes
Type ():EVM
Volume ():0.811 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428043755 |
| Coil () | Yes |
| Type () | EVM |
| Volume () | 0.811 Liter |
| Approval () | EACLLC CDC TYSK |
| Function () | NC |
| Coil type () | BE110CS |
| Direction () | None |
| Net weight () | 0.567 Kg |
| Serviceable () | No |
| Gross weight () | 0.596 Kg |
| Refrigerants () | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R744R507A |
| Body material () | Steel |
| Product group () | Press. and temp. regul. valves |
| Frequency [Hz] () | 50/60 Hz |
| Packing format () | Multi pack |
| Coil connection () | Connection Box |
| Valve operation () | Servo-piston |
| Kv value [m³/h] () | 0.28 m³/h |
| Type designation () | Solenoid valve |
| Orifice size [mm] () | 3.3 mm |
| Power consumption () | 10 W |
| Cv value [gal/min] () | 0.324 gal/min |
| EU RoHS compliance () | No - out of scope |
| MaxOPD[bar] 10W AC () | 21 bar |
| MaxOPD[bar] 20W DC () | 14 bar |
| MaxOPD[psi] 10W AC () | 305 psi |
| Parts Program name () | CVHICS |
| Ambient temperature () | -40 - 80 °C |
| Enclosure rating IP () | IP67 |
| Product accessories () | Pilot valve accessories |
| Actuator system [mm] () | 13.5 mm |
| Inlet connection type () | Thread |
| Supply voltage [V] AC () | 110 V |
| Manual operation option () | No |
| Product Name Description () | Pilot valve |
| Power consumption [W] 50Hz () | 15 W |
| Power consumption [W] 60Hz () | 13 W |
| Max. Working Pressure [bar] () | 65 bar |
| Quantity per packing format () | 16 pc |
| Supply voltage 50Hz Max [V] () | 110 V |
| Supply voltage 60Hz Max [V] () | 110 V |
| Max. Working Pressure [psig] () | 940 psig |
| REACH Candidate List substances () | No |
| Medium temperature range [°C] [max] () | 120 °C |
| Medium temperature range [°C] [min] () | -60 °C |
| Medium temperature range [°F] [max] () | 248 °F |
| Medium temperature range [°F] [min] () | -76 °F |
| Ambient temperature range [°F] [max] () | 176 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Pilot valve, EVM
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Kv value [m³/h]: 0.280, Max. Working Pressure [bar]: 65.0
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
