In Stock Hot Product
027B1102

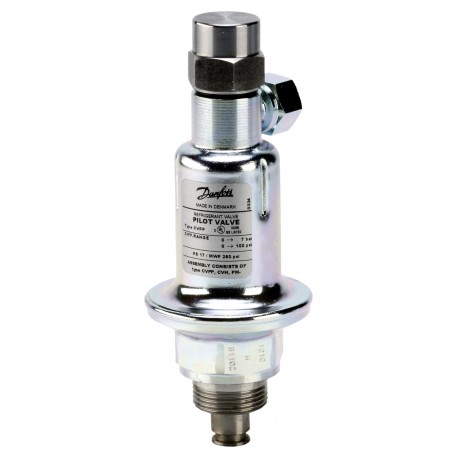

027B1102 DANFOSS REFRIGERATION Pilot valve
$0.00USD
3023 in stock
Key Specifications
EAN ():5702422047780
Type ():CVPP-LP
Volume ():0.486 Liter
Approval ():CRNEACLLC CDC TYSKUL
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702422047780 |
| Type () | CVPP-LP |
| Volume () | 0.486 Liter |
| Approval () | CRNEACLLC CDC TYSKUL |
| Net weight () | 0.468 Kg |
| Fluid Group () | 1 |
| Serviceable () | Pilot valve spare parts |
| Gross weight () | 0.516 Kg |
| PED category () | Art. 3, par. 3 |
| Refrigerants () | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R744R507A |
| Product group () | Press. and temp. regul. valves |
| Valve version () | Low pressure |
| Packing format () | Multi pack |
| Kv value [m³/h] () | 0.4 m³/h |
| Cv value [gal/min] () | 0.46 gal/min |
| EU RoHS compliance () | No - out of scope |
| Product accessories () | No |
| Product description () | Diff.-pressure pilot valve |
| UL approval file name () | REFRIGERANT VALVE 53R0 |
| Product Name Description () | Pilot valve |
| Max. Working Pressure [bar] () | 17 bar |
| Quantity per packing format () | 12 pc |
| Max. Working Pressure [psig] () | 246 psig |
| Pressure range [bar] Pe [max] () | 7 bar |
| Pressure range [bar] Pe [min] () | 0 bar |
| Temperature range [°C] [max] () | 120 °C |
| Temperature range [°C] [min] () | -50 °C |
| Temperature range [°F] [max] () | 248 °F |
| Temperature range [°F] [min] () | -58 °F |
| Pressure range [psig] Pe [max] () | 102 psig |
| Pressure range [psig] Pe [min] () | 0 psig |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
Pilot valve, CVPP-LP, Diff.-pressure pilot valve
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Kv value [m³/h]: 0.400, Max. Working Pressure [bar]: 17.0, Temperature range [°C]: -50 - 120
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
