027B0922

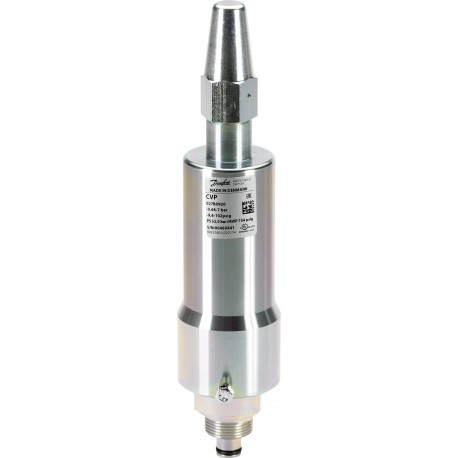

027B0922 DANFOSS REFRIGERATION Pilot valve
$0.00USD
4126 in stock
Key Specifications
EAN ():5702428557641
Type ():CVP-H
Brand ():ICV Flexline
Volume ():2.814 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428557641 |
| Type () | CVP-H |
| Brand () | ICV Flexline |
| Volume () | 2.814 Liter |
| Approval () | EACUL |
| Net weight () | 1.46 Kg |
| Fluid Group () | 1 |
| Serviceable () | Pilot valve spare parts |
| Gross weight () | 1.65 Kg |
| PED category () | Art. 3, par. 3 |
| Refrigerants () | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R744R507AR1234yfR1234ze(E)R125R152aR227eaR236faR245faR290R32R407HR413AR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR512AR513AR513BR515AR515BR516AR170R452CR600R600a |
| Product group () | Press. and temp. regul. valves |
| Valve version () | High pressure |
| Packing format () | Multi pack |
| Parts included () | Gasket |
| Surface coating () | Zn (TLP) |
| Kv value [m³/h] () | 0.4 m³/h |
| Cv value [gal/min] () | 0.46 gal/min |
| EU RoHS compliance () | No - out of scope |
| Parts Program name () | CVHICSICFPM |
| Product accessories () | No |
| Product description () | Constant-pressure pilot valve |
| UL approval file name () | REFRIGERANT VALVE 53R0 |
| Product Name Description () | Pilot valve |
| Max. Working Pressure [bar] () | 65 bar |
| Quantity per packing format () | 6 pc |
| Max. Working Pressure [psig] () | 943 psig |
| Pressure range [bar] Pe [max] () | 52 bar |
| Pressure range [bar] Pe [min] () | 25 bar |
| Temperature range [°C] [max] () | 120 °C |
| Temperature range [°C] [min] () | -60 °C |
| Temperature range [°F] [max] () | 248 °F |
| Temperature range [°F] [min] () | -76 °F |
| Pressure range [psig] Pe [max] () | 754 psig |
| Pressure range [psig] Pe [min] () | 363 psig |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
CVP Pilot valve25 to 52 bar
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Pressure range [bar] Pe: 25.00 - 52.00, Kv value [m³/h]: 0.400, Max. Working Pressure [bar]: 65.0, Temperature range [°C]: -60 - 120
