023Z8505

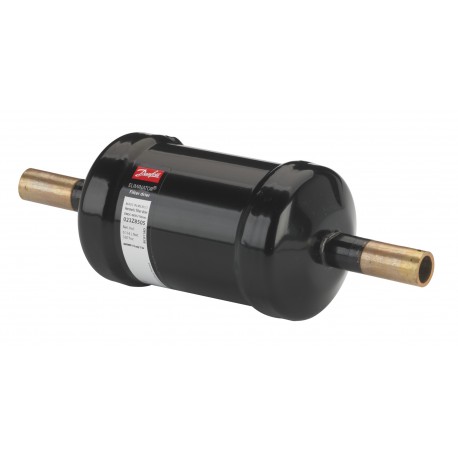

023Z8505 DANFOSS REFRIGERATION Hermetic filter drier DML
$0.00USD
3117 in stock
Key Specifications
EAN ():5702428989046
Core ():Solid core
Type ():DMSC
Brand ():ELIMINATOR
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428989046 |
| Core () | Solid core |
| Type () | DMSC |
| Brand () | ELIMINATOR |
| Braket () | No |
| Volume () | 1.511 Liter |
| Approval () | UL |
| Net weight () | 0.48 Kg |
| Fluid Group () | 2 |
| Serviceable () | No |
| Gross weight () | 0.613 Kg |
| PED category () | Art. 4, par. 3 |
| Refrigerants () | R744 |
| Body material () | Steel |
| Product group () | Filter driers |
| Core Size code () | 08 cu.in. |
| Net volume [l] () | 0.125 L |
| Packing format () | Multi pack |
| Shell volume [l] () | 0.19 L |
| Type designation () | DMSC 083S/10mm |
| EU RoHS compliance () | Yes with exemptions |
| Connection material () | Copper |
| Net volume [foz US] () | 4.22 Fluid Ounce US |
| Product description () | Liquid line filter drier |
| Inlet connection type () | Solder, ODF |
| Shell volume [foz US] () | 6.4 Fluid Ounce US |
| UL approval file name () | SA6398 |
| Outlet connection type () | Solder, ODF |
| Solid core volume [cm3] () | 107 cm³ |
| Solid core volume [in3] () | 6.52 in³ |
| Flow direction indicator () | Label printed 1-way arrow |
| Product Name Description () | Hermetic filter drier |
| Solid core surface [cm2] () | 118 cm² |
| Solid core surface [in2] () | 18 in² |
| UL approved refrigerants () | R744 |
| Inlet connection size [mm] () | 10 mm |
| Max. Working Pressure [bar] () | 52 bar |
| Outlet connection size [mm] () | 10 mm |
| Quantity per packing format () | 12 pc |
| Max. Working Pressure [psig] () | 754 psig |
| Temperature range [°C] [max] () | 17 °C |
| Temperature range [°C] [min] () | -30 °C |
| Temperature range [°F] [max] () | 63 °F |
| Temperature range [°F] [min] () | -22 °F |
| Activated alum/Molec sieve [%] () | 0% / 100% |
| REACH Candidate List substances () | No |
| In scope of WEEE and contain batteries () | No |
Product Description
Hermetic filter drier, DMSC, 08 cu.in., Copper
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Core Size code: 08 cu.in.
