023Z8408

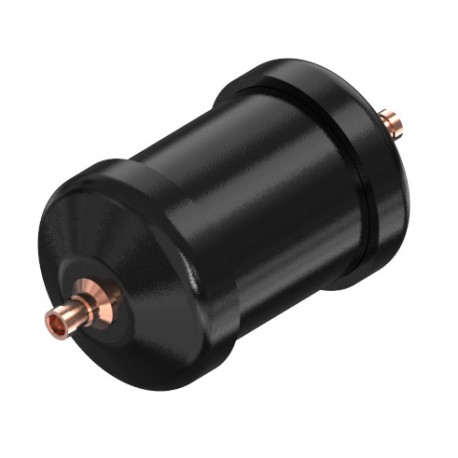

023Z8408 DANFOSS REFRIGERATION Hermetic filter drier, DMT
$0.00USD
4503 in stock
Key Specifications
EAN ():5702428932400
Type ():DMT
Braket ():No
Volume ():1.874 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428932400 |
| Type () | DMT |
| Braket () | No |
| Volume () | 1.874 Liter |
| Net weight () | 0.914 Kg |
| Serviceable () | No |
| Gross weight () | 0.987 Kg |
| PED category () | Art. 4, par. 3 |
| Refrigerants () | R744 |
| Body material () | Steel |
| Product group () | Filter driers |
| Core Size code () | 08 cu.in. |
| Net volume [l] () | 0.114 L |
| Packing format () | Industrial pack |
| Shell volume [l] () | 0.17 L |
| Type designation () | DMT 082S |
| Acid capacity [g] () | 0.54 g |
| Acid capacity [oz] () | 0.019 oz |
| EU RoHS compliance () | Yes with exemptions |
| Flow capacity [TR] () | R744: 1.3 |
| Flow capacity [kW] () | R744: 4.6 |
| Connection material () | Steel Cu-plated |
| Net volume [foz US] () | 3.87 Fluid Ounce US |
| Product description () | Liquid line filter drier |
| Inlet connection type () | Solder, ODF |
| Shell volume [foz US] () | 5.85 Fluid Ounce US |
| Outlet connection type () | Solder, ODF |
| Solid core volume [cm3] () | 59 cm³ |
| Solid core volume [in3] () | 3.57 in³ |
| Product Name Description () | Hermetic filter drier |
| Solid core surface [cm2] () | 118 cm² |
| Solid core surface [in2] () | 18.29 in² |
| Max. Working Pressure [bar] () | 140 bar |
| Quantity per packing format () | 12 pc |
| Inlet 1 connection size [in] () | 1/4 in |
| Max. Working Pressure [psig] () | 2030 psig |
| Outlet 1 connection size [in] () | 1/4 in |
| Temperature range [°C] [max] () | 100 °C |
| Temperature range [°C] [min] () | -40 °C |
| Temperature range [°F] [max] () | 212 °F |
| Temperature range [°F] [min] () | -40 °F |
| LiqCap Cond (ARI 710-2009)[SI] () | Delta p=0.07bartliq= 30°Ctvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] () | Delta p=1psitliq= 86°Ftvap=5°F |
| Drying Cap[Drops of Water]24°C () | R744:197 |
| REACH Candidate List substances () | No |
| In scope of WEEE and contain batteries () | No |
Product Description
Hermetic filter drier, DMT, 08 cu.in., Steel Cu-plated
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Core Size code: 08 cu.in.
