023Z8008

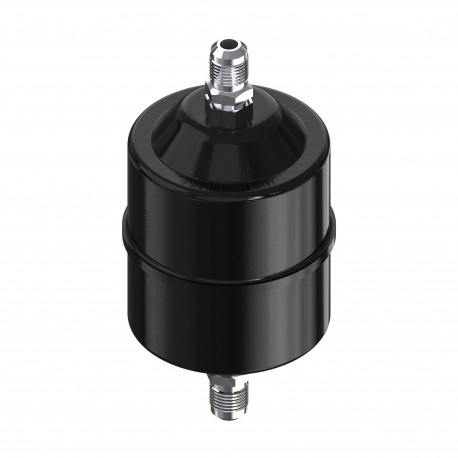

023Z8008 DANFOSS REFRIGERATION Hermetic filter drier, DCL
$0.00USD
3245 in stock
Key Specifications
EAN ():5702428154499
Core ():Solid core
Type ():DCL
Brand ():ELIMINATOR
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428154499 |
| Core () | Solid core |
| Type () | DCL |
| Brand () | ELIMINATOR |
| Braket () | No |
| Volume () | 1.583 Liter |
| Approval () | UL |
| Net weight () | 0.692 Kg |
| Fluid Group () | 2 |
| Serviceable () | No |
| Gross weight () | 0.7 Kg |
| PED category () | Art. 4, par. 3 |
| Refrigerants () | R1234yfR125R134aR22/R407CR23R32R404AR407AR407FR410AR422BR422DR438AR444BR448AR449AR449BR450AR452AR452BR454BR455AR507AR513AR1234ze(E)R1233zd(E)R407HR454AR454CR463AR515BR516A |
| Body material () | Steel |
| Product group () | Filter driers |
| Core Size code () | 16 cu.in. |
| Net volume [l] () | 0.226 L |
| Packing format () | Industrial pack |
| Shell volume [l] () | 0.35 L |
| Type designation () | DCL 163 |
| Acid capacity [g] () | 3.11 g |
| Acid capacity [oz] () | 0.11 oz |
| EU RoHS compliance () | Yes with exemptions |
| Flow capacity [TR] () | R134a: 5.2 |
| Flow capacity [kW] () | R134a: 18.1 |
| Connection material () | Steel |
| Net volume [foz US] () | 7.63 Fluid Ounce US |
| Product accessories () | Generic accessories |
| Product description () | Liquid line filter drier |
| Inlet connection type () | Flare |
| Oil free refrigerants () | R1234ze(E)R134aR513AR515A |
| Shell volume [foz US] () | 11.97 Fluid Ounce US |
| UL approval file name () | SA6398 |
| Outlet connection type () | Flare |
| Solid core volume [cm3] () | 128 cm³ |
| Solid core volume [in3] () | 7.84 in³ |
| Flow direction indicator () | Label printed 1-way arrow |
| Lubricants compatibility () | Oilfree applications |
| Product Name Description () | Hermetic filter drier |
| Solid core surface [cm2] () | 183 cm² |
| Solid core surface [in2] () | 28.34 in² |
| UL approved refrigerants () | R125R134aR22R23R404AR407AR407CR407FR410AR422BR422DR438AR448AR449AR449BR450AR452AR507AR513A |
| Inlet connection size [mm] () | 10 mm |
| Max. Working Pressure [bar] () | 46 bar |
| Outlet connection size [mm] () | 10 mm |
| Quantity per packing format () | 12 pc |
| Inlet 1 connection size [in] () | 3/8 in |
| Max. Working Pressure [psig] () | 667 psig |
| Outlet 1 connection size [in] () | 3/8 in |
| Temperature range [°C] [max] () | 70 °C |
| Temperature range [°C] [min] () | -40 °C |
| Temperature range [°F] [max] () | 160 °F |
| Temperature range [°F] [min] () | -40 °F |
| Activated alum/Molec sieve [%] () | 20% / 80% |
| LiqCap Cond (ARI 710-2009)[SI] () | Delta p=0.07bartliq= 30°Ctvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] () | Delta p=1psitliq= 86°Ftvap=5°F |
| Drying Cap[Drops of Water]24°C () | R134a: 443 |
| Drying Cap[Drops of Water]52°C () | R134a: 405 |
| REACH Candidate List substances () | No |
| In scope of WEEE and contain batteries () | No |
Product Description
Hermetic filter drier, DCL, 16 cu.in., Steel
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Flare, Outlet connection type: Flare, Core Size code: 16 cu.in.
