023Z7021

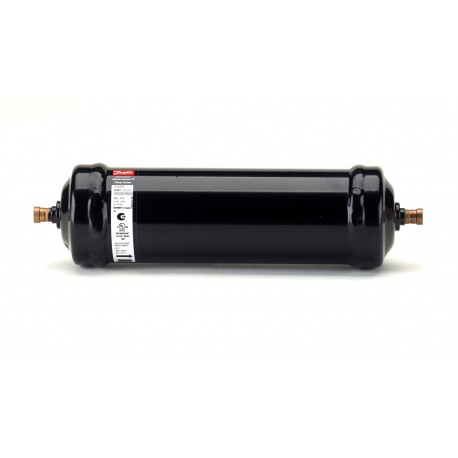

023Z7021 DANFOSS REFRIGERATION Hermetic receiver filter drier
$0.00USD
4069 in stock
Key Specifications
EAN ():5702428111355
Core ():Solid core
Type ():DMC
Brand ():ELIMINATOR
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428111355 |
| Core () | Solid core |
| Type () | DMC |
| Brand () | ELIMINATOR |
| Braket () | No |
| Volume () | 0.938 Liter |
| Approval () | UL |
| Core type () | Solid core |
| Net weight () | 0.72 Kilogram |
| Fluid Group () | 2 |
| Serviceable () | No |
| Gross weight () | 0.748 Kilogram |
| PED category () | Art. 4, par. 3 |
| Refrigerants () | R1233zd(E)R1234yfR1234ze(E)R125R134aR22/R407CR23R290R32R404AR407AR407FR407HR410AR422BR422DR438AR444BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR507AR513AR515BR516AR600 |
| UL evaluated () | Yes |
| Body material () | Steel |
| Product group () | Filter driers |
| Core Size code () | 20 cu.in. |
| Net volume [l] () | 0.325 L |
| Packing format () | Multi pack |
| Shell volume [l] () | 0.35 L |
| Type designation () | DMC 2032S |
| Acid capacity [g] () | 0.27 g |
| Acid capacity [oz] () | 0.01 oz |
| EU RoHS compliance () | Yes with exemptions |
| Filter application () | High Moisture Capacity |
| Flow capacity [TR] () | R134a: 1.8R290: 2.2R32: 2.7R404A: 1.3R407C: 1.8R410A: 1.9R507: 1.2 |
| Flow capacity [kW] () | R134a: 6.3R290: 7.6R32: 9.6R404A: 4.4R407C: 6.4R410A: 6.5R507: 4.3 |
| UK RoHS compliance () | Out of scope |
| Connection material () | Steel Cu-plated |
| Molecular sieve [%] () | 100 % |
| Net volume [foz US] () | 10.99 Fluid Ounce US |
| Product description () | Combi filter drier |
| Activated alumina [%] () | 0 % |
| China RoHS compliance () | Yes exceed limitations |
| Inlet connection type () | Solder, ODF |
| Oil free refrigerants () | R1234ze(E)R134aR513AR515A |
| Shell volume [foz US] () | 12 Fluid Ounce US |
| UL approval file name () | SA6398 |
| Outlet connection type () | Solder, ODF |
| Solid core volume [cm3] () | 30 cm³ |
| Solid core volume [in3] () | 1.83 in³ |
| EU RoHS exemption clause () | 6(a) |
| Flow direction indicator () | Label printed 1-way arrow |
| Lubricants compatibility () | Oilfree applications |
| Product Name Description () | Hermetic receiver filter drier |
| Solid core surface [cm2] () | 72 cm² |
| Solid core surface [in2] () | 11.14 in² |
| UL approved refrigerants () | R125R134aR22R23R404AR407AR407CR407FR410AR422BR422DR438AR448AR449AR449BR450AR452AR507AR513A |
| Inlet connection size [mm] () | 6 mm |
| Max. Working Pressure [bar] () | 42 bar |
| Outlet connection size [mm] () | 6 mm |
| Quantity per packing format () | 18 pc |
| Max. Working Pressure [psig] () | 610 psig |
| Temperature range [°C] [max] () | 70 °C |
| Temperature range [°C] [min] () | -40 °C |
| Temperature range [°F] [max] () | 160 °F |
| Temperature range [°F] [min] () | -40 °F |
| Activated alum/Molec sieve [%] () | 0% / 100% |
| LiqCap Cond (ARI 710-2009)[SI] () | Delta p=0.07bartliq= 30°Ctvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] () | Delta p=1psitliq= 86°Ftvap=5°F |
| Drying Cap[Drops of Water]24°C () | R134a: 126R290: --R32: --R404A: 132R407C: 123R410A: 115R507: 138 |
| Drying Cap[Drops of Water]52°C () | R134a: 116R290: --R32: --R404A: 125R407C: 113R410A: 102R507: 124 |
| REACH Candidate List substances () | No |
| In scope of WEEE and contain batteries () | No |
Product Description
Receiver filter drier DMC 2032S/6mm M/18
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Core Size code: 20 cu.in.
