023Z5005

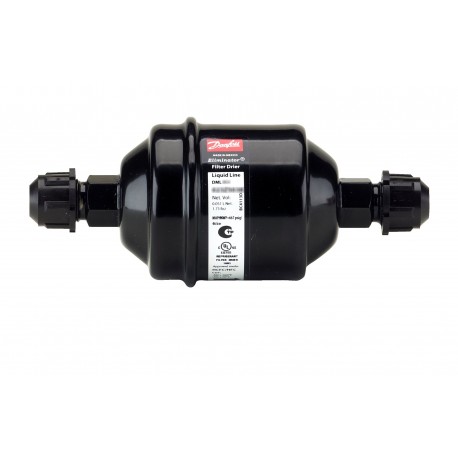

023Z5005 DANFOSS REFRIGERATION Hermetic filter drier
$0.00USD
4506 in stock
Key Specifications
EAN:5702428156066
Core:Solid core
Brand:ELIMINATOR
Approval:UL
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428156066 |
| Core | Solid core |
| Brand | ELIMINATOR |
| Approval | UL |
| Category | Art. 3, par. 3 |
| Net weight | 0.35 Kg |
| Fluid Group | II |
| Serviceable | No |
| Gross weight | 0.42 Kg |
| Product name | Hermetic filter drier |
| Product type | DCL |
| Refrigerants | R1234yfR1234zeR125R134aR22/R407CR23R32R404AR407AR407FR410AR422BR422DR438AR444BR448AR449AR449BR450AR452AR452BR454BR455AR507AR513A |
| Body material | Steel |
| Product Group | Filter driers |
| Core Size code | 08 cu.in. |
| Net volume [l] | 0.114 L |
| Packing format | Multi pack |
| Flow Capacity KW | R134a: 16.0R290: --R32: 24.3R404A: 11.2R407C: 16.3R410A: 16.6R507: 10.9 |
| Flow Capacity TR | R134a: 4.5R290: --R32: 6.9R404A: 3.2R407C: 4.6R410A: 4.7R507: 3.1 |
| Shell volume [l] | 0.17 L |
| Type designation | DCL 083 |
| Acid capacity [g] | 1.38 g |
| Specification key | DCL 083 |
| Acid capacity [oz] | 0.049 oz |
| Connection material | Steel |
| Net volume [foz US] | 3.87 oz |
| Product description | Liquid line filter drier |
| Product family name | DCL |
| Inlet connection type | FLARE |
| Shell volume [foz US] | 5.85 oz |
| UL approval file name | SA6398 |
| Outlet connection type | FLARE |
| Solid core volume [cm3] | 59 cm3 |
| Solid core volume [in3] | 3.57 in3 |
| System line application | Liquid line |
| Flow direction indicator | Label printed 1-way arrow |
| Solid core surface [cm2] | 118 cm2 |
| Solid core surface [in2] | 18.29 in2 |
| Inlet connection size [mm] | 10 mm |
| Max. Working Pressure [bar] | 46 bar |
| Outlet connection size [mm] | 10 mm |
| Quantity per packing format | 24 pc |
| Inlet 1 connection size [in] | 3/8 in |
| Max. Working Pressure [psig] | 667 psig |
| Outlet 1 connection size [in] | 3/8 in |
| Temperature range [°C] [Max] | 70 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 160 °F |
| Temperature range [°F] [Min] | -40 °F |
| Activated alum/Molec sieve [%] | 20% / 80% |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bartliq= 30°Ctvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psitliq= 86°Ftvap=5°F |
| Drying Cap[Drops of Water]24°C | R134a: 196R290: --R32: 165R404A: 204R407C: 190R410A: 178R507: 214 |
| Drying Cap[Drops of Water]52°C | R134a: 180R290: --R32: 152R404A: 194R407C: 176R410A: 158R507: 192 |
Product Description
Hermetic Filter Dryer, DCL, Steel
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
