023Z1477

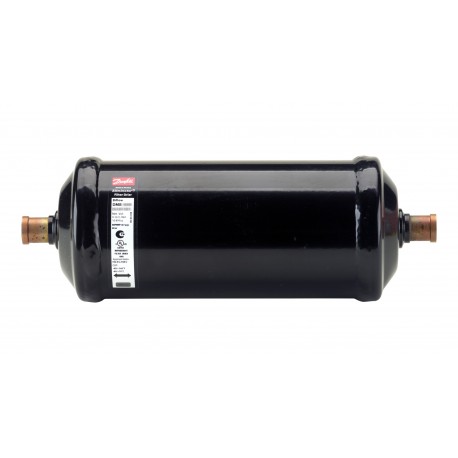

023Z1477 DANFOSS REFRIGERATION Hermetic bi-flow filter drier
$0.00USD
3301 in stock
Key Specifications
EAN ():5702428105668
Type ():DMB
Brand ():ELIMINATOR
Braket ():No
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428105668 |
| Type () | DMB |
| Brand () | ELIMINATOR |
| Braket () | No |
| Volume () | 1.987 Liter |
| Approval () | UL |
| Core type () | Solid core |
| Net weight () | 1.31 Kilogram |
| Serviceable () | No |
| Gross weight () | 1.46 Kilogram |
| PED category () | Art. 4, par. 3 |
| Refrigerants () | R1233zd(E)R1234yfR1234ze(E)R125R134aR22/R407CR23R290R32R404AR407AR407FR407HR410AR422BR422DR438AR444BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR507AR513AR515BR516AR600 |
| UL evaluated () | Yes |
| Body material () | Steel |
| Product group () | Filter driers |
| Core Size code () | 30 cu.in. |
| Net volume [l] () | 0.501 L |
| Packing format () | Multi pack |
| Shell volume [l] () | 0.73 L |
| Type designation () | DMB 307S |
| Acid capacity [g] () | 1.77 g |
| Acid capacity [oz] () | 0.062 oz |
| EU RoHS compliance () | Yes with exemptions |
| Filter application () | High Moisture Capacity |
| Flow capacity [TR] () | R134a: 11.4R290: 13.7R32: 17.3R404A: 8.0R407C: 11.7R410A: 11.8R507: 7.8 |
| Flow capacity [kW] () | R134a: 40.0R290: 48.2R32: 61.0R404A: 28.2R407C: 41.0R410A: 41.7R507: 27.3 |
| UK RoHS compliance () | Out of scope |
| Connection material () | Steel Cu-plated |
| Molecular sieve [%] () | 100 % |
| Net volume [foz US] () | 16.95 Fluid Ounce US |
| Product description () | Biflow filter drier |
| Activated alumina [%] () | 0 % |
| China RoHS compliance () | Yes exceed limitations |
| Inlet connection type () | Solder, ODF |
| Oil free refrigerants () | R1234ze(E)R134aR513AR515A |
| Shell volume [foz US] () | 24.73 Fluid Ounce US |
| Outlet connection type () | Solder, ODF |
| Solid core volume [cm3] () | 204 cm³ |
| Solid core volume [in3] () | 12.43 in³ |
| EU RoHS exemption clause () | 6(a) |
| Lubricants compatibility () | Oilfree applications |
| Product Name Description () | Hermetic bi-flow filter drier |
| Solid core surface [cm2] () | 275 cm² |
| Solid core surface [in2] () | 42.6 in² |
| UL approved refrigerants () | R125R134aR22R23R404AR407AR407CR407FR410AR422BR422DR438AR448AR449AR449BR450AR452AR507AR513A |
| Max. Working Pressure [bar] () | 46 bar |
| Quantity per packing format () | 8 pc |
| Inlet 1 connection size [in] () | 7/8 in |
| Max. Working Pressure [psig] () | 667 psig |
| Outlet 1 connection size [in] () | 7/8 in |
| Temperature range [°C] [max] () | 70 °C |
| Temperature range [°C] [min] () | -40 °C |
| Temperature range [°F] [max] () | 160 °F |
| Temperature range [°F] [min] () | -40 °F |
| LiqCap Cond (ARI 710-2009)[SI] () | Delta p=0.07bartliq= 30°Ctvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] () | Delta p=1psitliq= 86°Ftvap=5°F |
| Drying Cap[Drops of Water]24°C () | R134a: 821R290: --R32: 691R404A: 855R407C: 798R410A: 744R507: 896 |
| Drying Cap[Drops of Water]52°C () | R134a: 752R290: --R32: 636R404A: 810R407C: 735R410A: 661R507: 806 |
| REACH Candidate List substances () | No |
| In scope of WEEE and contain batteries () | No |
Product Description
Biflow filter drier DMB 307S M/8
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Core Size code: 30 cu.in.
