In Stock Hot Product
023Z1447

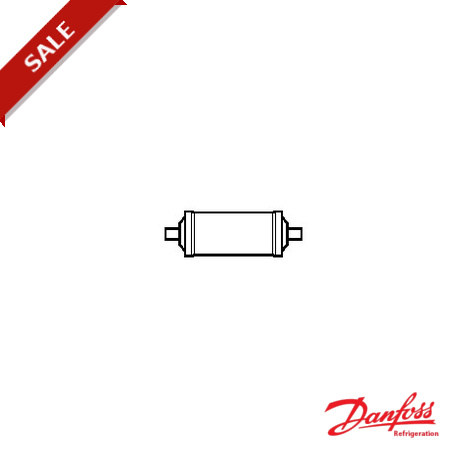

023Z1447 DANFOSS REFRIGERATION Hermetic bi-flow filter drier
$0.00USD
4234 in stock
Key Specifications
EAN:5702428105361
Core:Solid core
Brand:ELIMINATOR
Approval:UL
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428105361 |
| Core | Solid core |
| Brand | ELIMINATOR |
| Approval | UL |
| Category | Art. 3, par. 3 |
| Net weight | 1.33 Kg |
| Fluid Group | II |
| Serviceable | No |
| Gross weight | 1.46 Kg |
| Product name | Hermetic bi-flow filter drier |
| Product type | DMB |
| Refrigerants | R1234yfR1234zeR125R134aR22/R407CR23R290R32R404AR407AR407FR410AR422BR422DR438AR444BR448AR449AR449BR450AR452AR452BR454BR455AR507AR513AR600 |
| Body material | Steel |
| Product Group | Filter driers |
| Core Size code | 30 cu.in. |
| Net volume [l] | 0.501 L |
| Packing format | Multi pack |
| Flow Capacity KW | R134a: 40.0R290: 48.2R32: 61.0R404A: 28.2R407C: 41.0R410A: 41.7R507: 27.3 |
| Flow Capacity TR | R134a: 11.4R290: 13.7R32: 17.3R404A: 8.0R407C: 11.7R410A: 11.8R507: 7.8 |
| Shell volume [l] | 0.73 L |
| Type designation | DMB 307S |
| Acid capacity [g] | 1.77 g |
| Specification key | DMB 307S |
| Acid capacity [oz] | 0.062 oz |
| Connection material | Copper |
| Net volume [foz US] | 16.95 oz |
| Product description | Biflow filter drier |
| Inlet connection type | SOLDER, ODF |
| Shell volume [foz US] | 24.73 oz |
| UL approval file name | SA6398 |
| Outlet connection type | SOLDER, ODF |
| Solid core volume [cm3] | 204 cm3 |
| Solid core volume [in3] | 12.43 in3 |
| Flow direction indicator | Label printed 1-way arrow |
| Solid core surface [cm2] | 275 cm2 |
| Solid core surface [in2] | 42.6 in2 |
| Max. Working Pressure [bar] | 46 bar |
| Quantity per packing format | 8 pc |
| Inlet 1 connection size [in] | 7/8 in |
| Max. Working Pressure [psig] | 667 psig |
| Outlet 1 connection size [in] | 7/8 in |
| Temperature range [°C] [Max] | 70 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 160 °F |
| Temperature range [°F] [Min] | -40 °F |
| Activated alum/Molec sieve [%] | 0% / 100% |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bartliq= 30°Ctvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psitliq= 86°Ftvap=5°F |
| Drying Cap[Drops of Water]24°C | R290: -- |
| Drying Cap[Drops of Water]52°C | R290: -- |
Product Description
Biflow filter drier DMB 307S M/8
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
