023Z1019

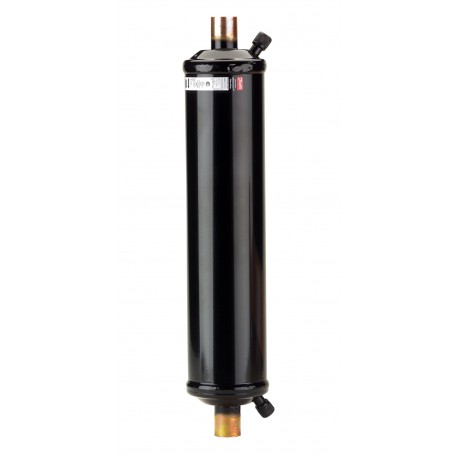

023Z1019 DANFOSS REFRIGERATION Hermetic burn-out filter drier
$0.00USD
4617 in stock
Key Specifications
EAN ():5702428160346
Core ():Solid core
Type ():DAS
Brand ():ELIMINATOR
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428160346 |
| Core () | Solid core |
| Type () | DAS |
| Brand () | ELIMINATOR |
| Braket () | No |
| Volume () | 3.107 Liter |
| Approval () | UL |
| Core type () | Solid core |
| Net weight () | 2.419 Kilogram |
| Fluid Group () | 2 |
| Serviceable () | No |
| Gross weight () | 2.565 Kilogram |
| PED category () | Art. 4, par. 3 |
| Refrigerants () | R1234yfR1234ze(E)R125R134aR22/R407CR23R290R32R404AR407AR407FR410AR422BR422DR438AR444BR448AR449AR449BR450AR452AR452BR454BR455AR507AR513AR600 |
| UL evaluated () | Yes |
| Body material () | Steel |
| Product group () | Filter driers |
| Core Size code () | 60 cu.in. |
| Net volume [l] () | 0.827 L |
| Packing format () | Multi pack |
| Connection notes () | Schraeder Inlet / Outlet |
| SCIP dossier no. () | a9d5b0f2-6647-48a9-a7b2-4f578fb6931e |
| Shell volume [l] () | 1.34 L |
| Type designation () | DAS 607SVV |
| Acid capacity [g] () | 34.57 g |
| Acid capacity [oz] () | 1.219 oz |
| EU RoHS compliance () | Yes with exemptions |
| Filter application () | Compressor Burnout |
| Flow capacity [TR] () | R134a: 3.4R404A: 4.8R407C: 5.7R410A: 5.7R507: 4.8 |
| Flow capacity [kW] () | R134a: 12.0R404A: 17.0R407C: 20.0R410A: 20.0R507: 17.0 |
| UK RoHS compliance () | Out of scope |
| Connection material () | Copper |
| Molecular sieve [%] () | 30 % |
| Net volume [foz US] () | 27.96 Fluid Ounce US |
| Product accessories () | No |
| Product description () | Suction line filter drier |
| Activated alumina [%] () | 70 % |
| China RoHS compliance () | Yes exceed limitations |
| Inlet connection type () | Solder, ODF |
| Oil free refrigerants () | R1234ze(E)R134aR513AR515A |
| Shell volume [foz US] () | 45.44 Fluid Ounce US |
| UL approval file name () | SA6398 |
| Outlet connection type () | Solder, ODF |
| Solid core volume [cm3] () | 517 cm³ |
| Solid core volume [in3] () | 31.54 in³ |
| EU RoHS exemption clause () | 6(a) |
| Flow direction indicator () | Label printed 1-way arrow |
| Lubricants compatibility () | Oilfree applications |
| Product Name Description () | Hermetic burn-out filter drier |
| Solid core surface [cm2] () | 680 cm² |
| Solid core surface [in2] () | 105.4 in² |
| UL approved refrigerants () | R125R134aR22R23R404AR407AR407CR407FR410AR422BR422DR438AR448AR449AR449BR450AR452AR507AR513A |
| SCIP dossier product name () | Filter Driers |
| Max. Working Pressure [bar] () | 35 bar |
| Quantity per packing format () | 12 pc |
| Inlet 1 connection size [in] () | 7/8 in |
| Max. Working Pressure [psig] () | 508 psig |
| FlowCap Cond (ARI 730-05)[SI] () | Delta p=0.21bartevap=4°C |
| Outlet 1 connection size [in] () | 7/8 in |
| Temperature range [°C] [max] () | 70 °C |
| Temperature range [°C] [min] () | -40 °C |
| Temperature range [°F] [max] () | 160 °F |
| Temperature range [°F] [min] () | -40 °F |
| Activated alum/Molec sieve [%] () | 70% / 30% |
| FlowCap Cond (ARI 730-05)[IMP] () | Delta p=3PSItevap=40°F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
Burn-out filter drier DAS 607SVV M/12
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Product description: Suction line filter drier, Max. Working Pressure [bar]: 35.0, Connection material: Copper
