023U7285

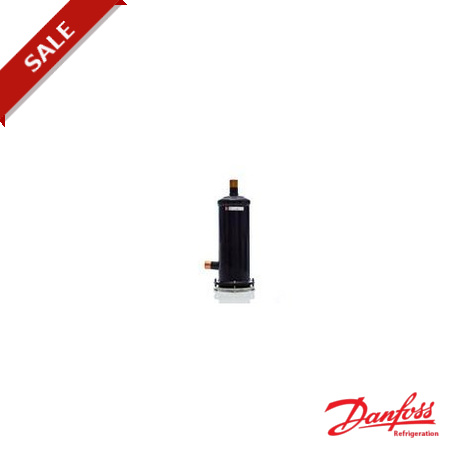

023U7285 DANFOSS REFRIGERATION Filter drier, shell
$0.00USD
3315 in stock
Key Specifications
EAN:5702428202466
Brand:ELIMINATOR
Cover:Blank
Approval:CECSAUL
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428202466 |
| Brand | ELIMINATOR |
| Cover | Blank |
| Approval | CECSAUL |
| Category | I |
| Net weight | 4.96 Kg |
| Fluid Group | II |
| Serviceable | DCR spare parts |
| Gross weight | 5.03 Kg |
| Liq Cap [Kw] | R1234ze: 150.9R134a: 170.0R404A: 119.6R407C: 174.2R410A: 176.9R452A: 121.1R507: 116.0 |
| Liq Cap [TR] | R1234ze: 42.9R134a: 48.3R404A: 34.0R407C: 49.5R410A: 50.3R452A: 34.4R507: 33.0 |
| Product name | Filter drier, shell |
| Product type | DCR |
| Refrigerants | R1234zeR125R134aR22/R407CR23R404AR407AR407FR410AR438AR448AR449AR449BR450AR452AR507AR513A |
| Body material | Steel |
| Product Group | Filter driers |
| Core Size code | 48 cu.in. |
| Net volume [l] | 1.492 L |
| Packing format | Single pack |
| Parts included | 1 cov2 felt gaskets8 Bolts |
| Connection type | Solder, ODF |
| Number of cores | 1 |
| Pressure Design | Normal Pressure |
| Shell volume [l] | 1.94 L |
| Type designation | DCR 0489s |
| Specification key | DCR 0489S |
| Connection options | Solder, ODF |
| Parts Program name | DCR |
| Connection material | Copper |
| Net volume [foz US] | 50.44 oz |
| Product accessories | DCR accessories |
| Product description | Refrigerant Filter Drier |
| Product family name | DCR-DADCR-DCDCR-DM |
| Shell volume [foz US] | 65.76 oz |
| UL approval file name | SA6398 |
| System line application | Liquid feed lineLiquid lineSuction line |
| Flow direction indicator | Label printed 1-way arrow |
| Connection Solder size [in] | 1 1/8 in |
| Max. Working Pressure [bar] | 46 bar |
| Quantity per packing format | 1 pc |
| Max. Working Pressure [psig] | 667 psig |
| Replace comp1 (Danfoss code) | 023Z9253 |
| Replace comp2 (Danfoss code) | 023Z2872 |
| Temperature range [°C] [Max] | 70 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 160 °F |
| Temperature range [°F] [Min] | -40 °F |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bartliq= 30°Ctvap=-15°C |
| LiqCapCond (ARI 710-2004)[IMP] | DELTA P=1PSITLIQ= 86°FTVAP=5°F |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psitliq= 86°Ftvap=5°F |
Product Description
DCR Filter 0489s Assy. Blank Cover
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
