In Stock Hot Product
023U7267

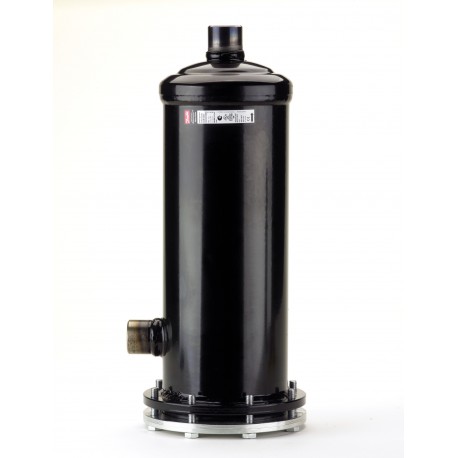

023U7267 DANFOSS REFRIGERATION Filter drier, shell
$0.00USD
4518 in stock
Key Specifications
EAN ():5702428249751
Type ():DCR
Brand ():ELIMINATOR
Cover ():Plug
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428249751 |
| Type () | DCR |
| Brand () | ELIMINATOR |
| Cover () | Plug |
| Braket () | No |
| Volume () | 28.296 Liter |
| Approval () | CECSAULUKCA |
| Net weight () | 9.116 Kg |
| Fluid Group () | 2 |
| Serviceable () | DCR spare parts |
| Gross weight () | 9.116 Kg |
| Liq Cap [Kw] () | R1234ze: 316.0 |
| Liq Cap [TR] () | R1234ze: 89.8 |
| MWP comments () | 35_bar/508_psig_as_receiver35_bar/508_psig_with_48-F |
| PED category () | I |
| Refrigerants () | R125R134aR22/R407CR23R404AR407AR407FR410AR438AR448AR449AR449BR450AR452AR507AR513AR1234ze(E) |
| Body material () | Steel |
| Product group () | Filter driers |
| Core Size code () | 144 cu.in. |
| Net volume [l] () | 3.577 L |
| Packing format () | Single pack |
| Parts included () | 1 cov8 Bolts6 felt gaskets |
| Connection type () | Solder, ODF |
| Number of cores () | 3 |
| SCIP dossier no. () | c3a995ba-725e-4eb6-8b7e-6509f3eb9554 |
| Shell volume [l] () | 4.85 L |
| Type designation () | DCR 14411s |
| EU RoHS compliance () | Yes with exemptions |
| Parts Program name () | DCR |
| Connection material () | Copper |
| Net volume [foz US] () | 120.96 Fluid Ounce US |
| Product accessories () | DCR accessories |
| Product description () | Refrigerant Filter Drier |
| Oil free refrigerants () | R134aR513AR515A |
| Shell volume [foz US] () | 164.29 Fluid Ounce US |
| UL approval file name () | SA6398 |
| Flow direction indicator () | Label printed 1-way arrow |
| Lubricants compatibility () | Oilfree applications |
| Product Name Description () | Filter drier, shell |
| UL approved refrigerants () | R125R134aR22R23R404AR407AR407CR407FR410AR438AR448AR449AR449BR450AR452AR507AR513A |
| SCIP dossier product name () | Filters |
| Connection Solder size [in] () | 1 3/8 in |
| Connection Solder size [mm] () | 35 mm |
| Max. Working Pressure [bar] () | 46 bar |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 667 psig |
| Temperature range [°C] [max] () | 70 °C |
| Temperature range [°C] [min] () | -40 °C |
| Temperature range [°F] [max] () | 160 °F |
| Temperature range [°F] [min] () | -40 °F |
| LiqCap Cond (ARI 710-2009)[SI] () | Delta p=0.07bartliq= 30°Ctvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] () | Delta p=1psitliq= 86°Ftvap=5°F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
DCR Filter 14411sAssy
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Core Size code: 144 cu.in., Connection material: Copper, Connection Solder size [in]: 1 3/8 in, Connection Solder size [mm]: 35.00
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
