023U7086

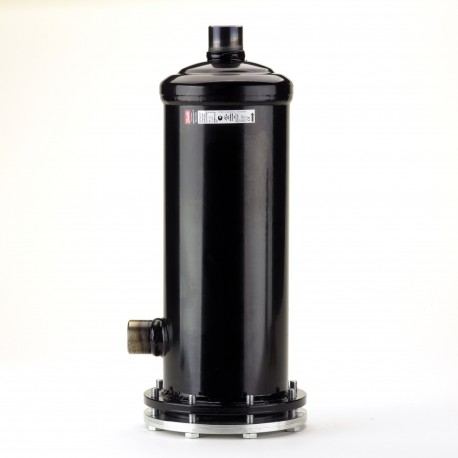

023U7086 DANFOSS REFRIGERATION Filter drier, shell
$0.00USD
4240 in stock
Key Specifications
EAN ():5702428125314
Type ():DCR
Brand ():ELIMINATOR
Cover ():Plug
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428125314 |
| Type () | DCR |
| Brand () | ELIMINATOR |
| Cover () | Plug |
| Braket () | No |
| Volume () | 32.508 Liter |
| Approval () | CECSAUKCAUL |
| Net weight () | 9.123 Kilogram |
| Fluid Group () | 2 |
| Serviceable () | DCR spare parts |
| CE evaluated () | Yes |
| Gross weight () | 10.236 Kilogram |
| Liq Cap [Kw] () | R1234ze: 408.3R134a: 459.9R404A: 323.5R407C: 471.4R410A: 478.6R452A: 327.6R507: 313.7 |
| Liq Cap [TR] () | R1234ze: 116.1R134a: 130.8R404A: 92.0R407C: 134.0R410A: 136.1R452A: 93.1R507: 89.2 |
| MWP comments () | 35_bar/508_psig_as_receiver35_bar/508_psig_with_48-F |
| PED category () | I |
| Refrigerants () | R1234ze(E)R125R134aR22/R407CR23R404AR407AR407FR410AR438AR448AR449AR449BR450AR452AR507AR513A |
| UL evaluated () | Yes |
| Body material () | Steel |
| Product group () | Filter driers |
| Core Size code () | 192 cu.in. |
| Net volume [l] () | 4.608 L |
| Packing format () | Single pack |
| Parts included () | 1 cov8 Bolts8 felt gaskets |
| Connection type () | Butt weld/Solder, ODF |
| Number of cores () | 4 |
| Shell volume [l] () | 6.3 L |
| Type designation () | DCR 19221 |
| EU RoHS compliance () | Yes with exemptions |
| Parts Program name () | DCR |
| UK RoHS compliance () | Out of scope |
| Connection material () | Steel |
| Connection standard () | ANSI/ASME B36.10M |
| Further information () | PS 40.0 bar |
| Net volume [foz US] () | 155.8 Fluid Ounce US |
| Product accessories () | DCR accessories |
| Product description () | Refrigerant Filter Drier |
| China RoHS compliance () | Yes exceed limitations |
| Oil free refrigerants () | R134aR513AR515A |
| Shell volume [foz US] () | 213.27 Fluid Ounce US |
| UL approval file name () | SA6398 |
| EU RoHS exemption clause () | 6(a) |
| Flow direction indicator () | Label printed 1-way arrow |
| Lubricants compatibility () | Oilfree applications |
| Product Name Description () | Filter drier, shell |
| UL approved refrigerants () | R125R134aR22R23R404AR407AR407CR407FR410AR438AR448AR449AR449BR450AR452AR507AR513A |
| Connection Solder size [in] () | 2 5/8 in |
| Max. Working Pressure [bar] () | 46 bar |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 667 psig |
| Temperature range [°C] [max] () | 70 °C |
| Temperature range [°C] [min] () | -40 °C |
| Temperature range [°F] [max] () | 160 °F |
| Temperature range [°F] [min] () | -40 °F |
| LiqCap Cond (ARI 710-2009)[SI] () | Delta p=0.07bartliq= 30°Ctvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] () | Delta p=1psitliq= 86°Ftvap=5°F |
| REACH Candidate List substances () | No |
| In scope of WEEE and contain batteries () | No |
Product Description
DCR Filter 19221 Assy
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Core Size code: 192 cu.in., Connection material: Steel, Connection Solder size [in]: 2 5/8 in
