023U7076

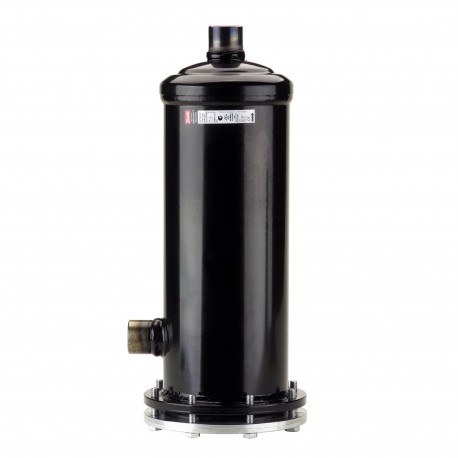

023U7076 DANFOSS REFRIGERATION Filter drier, shell
$0.00USD
4574 in stock
Key Specifications
EAN:5702428249539
Brand:ELIMINATOR
Cover:Plug
Approval:CECSAUL
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428249539 |
| Brand | ELIMINATOR |
| Cover | Plug |
| Approval | CECSAUL |
| Category | I |
| Net weight | 5.46 Kg |
| Fluid Group | II |
| Serviceable | DCR spare parts |
| Gross weight | 5.65 Kg |
| Liq Cap [Kw] | R1234ze: 226.4R134a: 255.0R404A: 179.3R407C: 261.3R410A: 265.4R452A: 181.6R507: 174.0 |
| Liq Cap [TR] | R1234ze: 64.4R134a: 72.5R404A: 51.0R407C: 74.3R410A: 75.5R452A: 51.6R507: 49.5 |
| Product name | Filter drier, shell |
| Product type | DCR |
| Refrigerants | R1234zeR125R134aR22/R407CR23R404AR407AR407FR410AR438AR448AR449AR449BR450AR452AR507AR513A |
| Body material | Steel |
| Product Group | Filter driers |
| Core Size code | 48 cu.in. |
| Net volume [l] | 1.492 L |
| Packing format | Single pack |
| Parts included | 1 cov2 felt gaskets8 Bolts |
| Connection type | Butt weld/Solder, ODF |
| Number of cores | 1 |
| Pressure Design | Normal Pressure |
| Shell volume [l] | 1.94 L |
| Type designation | DCR 04821 |
| Specification key | DCR 04821 |
| Connection options | Butt weld/Solder, ODF |
| Parts Program name | DCR |
| Connection material | Steel |
| Connection standard | ANSI/ASME B36.10M |
| Net volume [foz US] | 50.44 oz |
| Product accessories | DCR accessories |
| Product description | Refrigerant Filter Drier |
| Product family name | DCR-DADCR-DCDCR-DM |
| Shell volume [foz US] | 65.76 oz |
| UL approval file name | SA6398 |
| System line application | Liquid feed lineLiquid lineSuction line |
| Flow direction indicator | Label printed 1-way arrow |
| Connection Weld size [in] | 2.5 in |
| Connection Solder size [in] | 2 5/8 in |
| Max. Working Pressure [bar] | 46 bar |
| Quantity per packing format | 1 pc |
| Max. Working Pressure [psig] | 667 psig |
| Replace comp1 (Danfoss code) | 023Z9076 |
| Replace comp2 (Danfoss code) | 023Z2871 |
| Temperature range [°C] [Max] | 70 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 160 °F |
| Temperature range [°F] [Min] | -40 °F |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bartliq= 30°Ctvap=-15°C |
| LiqCapCond (ARI 710-2004)[IMP] | DELTA P=1PSITLIQ= 86°FTVAP=5°F |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psitliq= 86°Ftvap=5°F |
Product Description
DCR Filter 04821 Assy.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
