In Stock Hot Product
023U1391

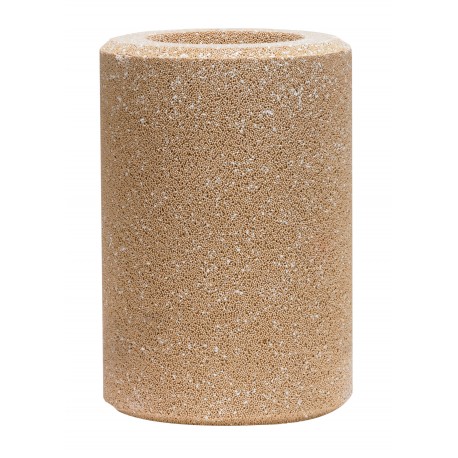

023U1391 DANFOSS REFRIGERATION Filter drier, core
$0.00USD
4420 in stock
Key Specifications
EAN ():5702428004800
Type ():DM
Brand ():ELIMINATOR
Volume ():1.55 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428004800 |
| Type () | DM |
| Brand () | ELIMINATOR |
| Volume () | 1.55 Liter |
| Core type () | Solid core |
| Net weight () | 0.565 Kg |
| Gross weight () | 0.666 Kg |
| Refrigerants () | R134aR22/R407CR401AR402AR404AR409AR410AR421AR422DR502R744R507AR290 |
| Product group () | Filter driers |
| Core Size code () | 48 cu.in. |
| Packing format () | Multi pack |
| Parts included () | 2 x Felt gasket (633L5312)1 x Gasket (023U0743) |
| Gasket included () | Yes |
| Type designation () | 48-DM |
| Acid capacity [g] () | 3.56 g |
| Acid capacity [oz] () | 0.126 oz |
| EU RoHS compliance () | No - out of scope |
| Filter application () | High Moisture Capacity |
| Parts Program name () | DCR |
| Further information () | High capacity |
| Molecular sieve [%] () | 100 % |
| Activated alumina [%] () | 0 % |
| Oil free refrigerants () | R1234ze(E)R134aR513AR515AR516A |
| Solid core volume [cm3] () | 727 cm³ |
| Solid core volume [in3] () | 44 in³ |
| Lubricants compatibility () | Oilfree applications |
| Product Name Description () | Filter drier, core |
| Solid core surface [cm2] () | 612 cm² |
| Solid core surface [in2] () | 95 in² |
| Quantity per packing format () | 3 pc |
| Temperature range [°C] [max] () | 70 °C |
| Temperature range [°C] [min] () | -40 °C |
| Temperature range [°F] [max] () | 160 °F |
| Temperature range [°F] [min] () | -40 °F |
| Activated alum/Molec sieve [%] () | 0% / 100% |
| Drying Cap[Drops of Water]24°C () | R1234ze: 1766 |
| Drying Cap[Drops of Water]52°C () | R1234ze: 1588 |
| REACH Candidate List substances () | No |
| In scope of WEEE and contain batteries () | No |
Product Description
Filter drier Core 48DM M/3
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Product Type: DM, Further information: High capacity, Activated alum/Molec sieve [%]: 0% / 100%, Gasket included: Yes
