021U0096

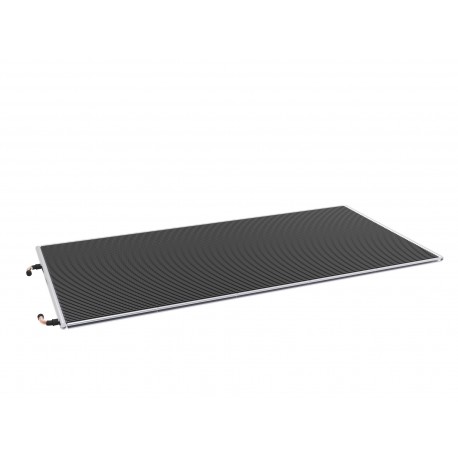

021U0096 DANFOSS REFRIGERATION Micro Channel heat exchanger, MCHE-D160SC-S
$0.00USD
4037 in stock
Key Specifications
EAN ():5702424291808
Type ():MCHE D1600-C
Volume ():47.94 Liter
Approval ():EACULPED
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702424291808 |
| Type () | MCHE D1600-C |
| Volume () | 47.94 Liter |
| Approval () | EACULPED |
| Net weight () | 5.977 Kilogram |
| Fluid Group () | 12 |
| Part Number () | DF0161 |
| Serviceable () | No |
| Gross weight () | 9.8 Kilogram |
| Refrigerants () | R410AR134aR290R32R452BR454BR1234yfR404AR407CR448AR449AR452AR513AR1234ze(E)R22R444BR449BR454AR454CR455AR513BR514AR515AR515BR600a |
| UL evaluated () | Yes |
| Body material () | Aluminium |
| Product group () | Heat exchangers |
| Fin pitch [mm] () | 1.1 mm |
| Flow direction () | Single-flow |
| Packing format () | Multi pack |
| Coil depth [in] () | 0.63 in |
| Coil depth [mm] () | 16 mm |
| Inlet size [in] () | 1/2 in |
| Inlet size [mm] () | 12.7 mm |
| Application area () | RefrigerationAir Conditioning |
| Coil Length [in] () | 51.18 in |
| Coil Length [mm] () | 1300 mm |
| Coil height [in] () | 25.16 in |
| Coil height [mm] () | 639.1 mm |
| Outlet size [in] () | 1/2 in |
| Outlet size [mm] () | 12.7 mm |
| Type designation () | D1600-C |
| Identical product () | 021U0099 |
| Approval file name () | SA33862CE-0062-PED-H-DMC 001-20-CHN-AЕАЭС KZ 7100841.13.12.01130 |
| EU RoHS compliance () | Yes with exemptions |
| UK RoHS compliance () | Yes |
| Connection material () | Copper |
| Product accessories () | No |
| China RoHS compliance () | Yes |
| Design pressure [MPa] () | 4.5 MPa |
| Inlet connection type () | Solder, ODF |
| Internal volume [cm3] () | 840 cm³ |
| Internal volume [in3] () | 51.3 in³ |
| Mounting bar material () | Aluminium |
| Number of tubes [pcs] () | 65 |
| Design pressure [psig] () | 653 psig |
| Outlet connection type () | Solder, ODF |
| EU RoHS exemption clause () | 6(c) |
| Product Name Description () | Micro Channel heat exchanger |
| Rated capacity R410A [TR] () | 5.77 TR |
| Rated capacity R410A [kW] () | 20.3 kW |
| Rated cap. conditions [SI] () | Air speed=2.5 m/sAmbient temp.=35 °CDelta t=12 °CSubcooling=5 °C |
| Max. Working Pressure [bar] () | 45 bar |
| Quantity per packing format () | 8 pc |
| Rated cap. conditions [IMP] () | Air speed=492 ft/minAmbient temp.=95 °FDelta t=21.6 °FSubcooling=9 °F |
| Max. Working Pressure [psig] () | 653 psig |
| Temperature range [°C] [max] () | 121 °C |
| Temperature range [°C] [min] () | -40 °C |
| Temperature range [°F] [max] () | 250 °F |
| Temperature range [°F] [min] () | -40 °F |
| REACH Candidate List substances () | No |
| Operation Ambient Temp [°C] [max] () | 72 °C |
| Operation Ambient Temp [°C] [min] () | -40 °C |
| Operation Ambient Temp [°F] [max] () | 162 °F |
| Operation Ambient Temp [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Micro Channel heat exchanger, MCHE D1600-C, Multi pack
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Rated capacity R410A [kW]: 20.30, Design pressure [MPa]: 4.5, Temperature range [°C]: -40 - 121
