021H5675

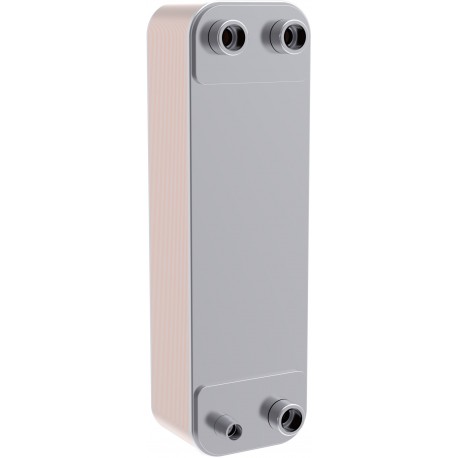

021H5675 DANFOSS REFRIGERATION Micro Plate heat exchanger C118L-E-78
$0.00USD
3236 in stock
Key Specifications
EAN ():5702424264055
Type ():MPHE C118L-E
Volume ():0.017 Liter
Approval ():EACPEDULASCRNKRAIARoHSUAUKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702424264055 |
| Type () | MPHE C118L-E |
| Volume () | 0.017 Liter |
| Approval () | EACPEDULASCRNKRAIARoHSUAUKCA |
| Function () | Evaporator |
| Equipment () | Stud |
| Model No. () | 118 |
| Net weight () | 28.22 Kilogram |
| Application () | Chiller |
| Gross weight () | 29.675 Kilogram |
| PED category () | III |
| Refrigerants () | R134aR22R404AR407CR410AR444BR448AR449AR450AR452BR454BR455AR513AR1233zd(E)R290R1234yfR245faR454CR507AR515BR1234zeR454A |
| UL evaluated () | Yes |
| Function note () | With distributor |
| H1 conn. size () | Null |
| H1 conn. type () | Victaulic connection |
| H2 conn. size () | Null |
| H2 conn. type () | Victaulic connection |
| H3 conn. size () | Null |
| H3 conn. type () | Null |
| H4 conn. size () | Null |
| H4 conn. type () | Null |
| H5 conn. size () | Null |
| H5 conn. type () | Null |
| H6 conn. size () | Null |
| H6 conn. type () | Null |
| Plate pattern () | EM |
| Product group () | Heat exchangers |
| Q1 conn. type () | G Internal thread connection |
| Q2 conn. type () | G Internal thread connection |
| Q3 conn. type () | Solder connection |
| Q4 conn. type () | Solder connection |
| Q5 conn. type () | Null |
| Q6 conn. type () | Null |
| Packing format () | Single pack |
| Brazing material () | Copper brazing |
| In scope of WEEE () | No |
| Number of plates () | 78 |
| Type designation () | C118L-E |
| EU RoHS compliance () | Yes |
| Plate material no. () | AISI 316L |
| UK RoHS compliance () | Yes |
| Q1 conn. size range () | G1/2 |
| Q2 conn. size range () | G1/2 |
| Q3 conn. size range () | 1 1/8 in |
| Q4 conn. size range () | 1 5/8 in |
| Q5 conn. size range () | Null |
| Q6 conn. size range () | Null |
| China RoHS compliance () | Yes |
| EU RoHS exemption clause () | No |
| Product Name Description () | Micro Plate heat exchanger |
| UK RoHS exemption clause () | No |
| Max working pressure [psi] () | 653 psi |
| Max. Working Pressure [bar] () | 45 bar |
| Quantity per packing format () | 1 pc |
| REACH Candidate List substances () | No |
| Design temperature range [°C] [max] () | 200 °C |
| Design temperature range [°C] [min] () | -196 °C |
| Design temperature range [°F] [max] () | 320 °F |
| Design temperature range [°F] [min] () | -390 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Micro Plate heat exchanger, MPHE C118L-E, Number of plates: 78
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Max. Working Pressure [bar]: 45.0, Chiller, Function: Evaporator, Brazing material: Copper brazing
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
