021H3593

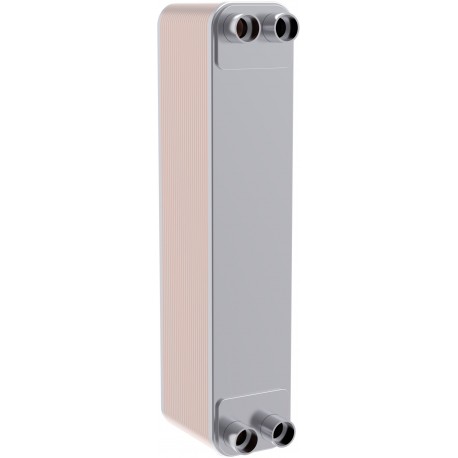

021H3593 DANFOSS REFRIGERATION Micro Plate heat exchanger D55L-H-10 (STDPG)
$0.00USD
3777 in stock
Key Specifications
EAN ():5702424268893
Type ():MPHE D55L
Volume ():15.848 Liter
Approval ():EACULASCRNKRAIAPEDRoHSUAUKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702424268893 |
| Type () | MPHE D55L |
| Volume () | 15.848 Liter |
| Approval () | EACULASCRNKRAIAPEDRoHSUAUKCA |
| Function () | Universal |
| Equipment () | Stud |
| Model No. () | 55 |
| Net weight () | 4.25 Kg |
| Application () | Universal |
| Gross weight () | 4.632 Kg |
| Refrigerants () | R134aR22R404AR407AR407CR407FR410AR444BR448AR449AR450AR452AR452BR454BR455AR513AR600aR1233zd(E)R290R11R113R114R12R123R1234yfR124R152aR227eaR245faR401AR402AR402BR407BR408AR409AR412AR413AR417AR422DR454CR500R502R507AR515BR508BR1233ze can't be used |
| Plate pattern () | M |
| Product group () | Heat exchangers |
| Q1 conn. type () | G External thread connection |
| Q2 conn. type () | G External thread connection |
| Q3 conn. type () | G External thread connection |
| Q4 conn. type () | G External thread connection |
| Packing format () | Single pack |
| Brazing material () | Copper brazing |
| Number of plates () | 10 |
| Type designation () | D55L |
| EU RoHS compliance () | Yes |
| Plate material no. () | AISI 316L |
| Q1 conn. size range () | G1-H7/8 in |
| Q2 conn. size range () | G1-H7/8 in |
| Q3 conn. size range () | G1-H7/8 in |
| Q4 conn. size range () | G1-H7/8 in |
| Product Name Description () | Micro Plate heat exchanger |
| Max working pressure [psi] () | 653 psi |
| Max. Working Pressure [bar] () | 45 bar |
| Quantity per packing format () | 1 pc |
| REACH Candidate List substances () | No |
| Design temperature range [°C] [max] () | 200 °C |
| Design temperature range [°C] [min] () | -196 °C |
| Design temperature range [°F] [max] () | 320 °F |
| Design temperature range [°F] [min] () | -390 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Heat Exchanger D55L-H-10 (STDPG)
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Function: Universal, Max working pressure [psi]: 653, Number of plates: 10, Brazing material: Copper brazing
