021H2727

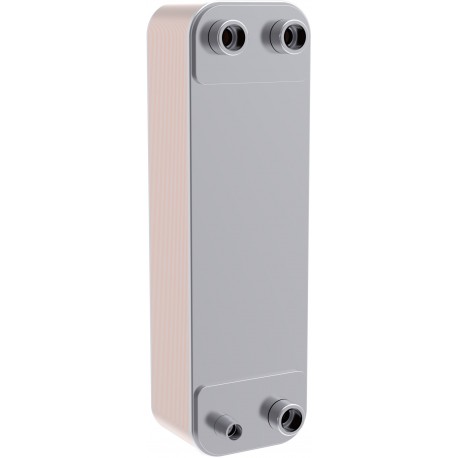

021H2727 DANFOSS REFRIGERATION Micro Plate heat exchanger D118L-E-70 (STDPG)
$0.00USD
4607 in stock
Key Specifications
EAN ():5702424270667
Type ():MPHE D118L-E
Volume ():38.123 Liter
Approval ():EACPEDULASCRNKRAIARoHSUAUKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702424270667 |
| Type () | MPHE D118L-E |
| Volume () | 38.123 Liter |
| Approval () | EACPEDULASCRNKRAIARoHSUAUKCA |
| Function () | Evaporator |
| Equipment () | Stud |
| Model No. () | 118 |
| Net weight () | 26.639 Kg |
| Application () | Universal |
| Gross weight () | 26.789 Kg |
| Refrigerants () | R134aR22R404AR407AR407CR407FR410AR444BR448AR449AR450AR452AR452BR454BR455AR513AR600aR1233zd(E)R290R11R113R114R12R123R1234yfR1234zeR124R152aR227eaR245faR401AR402AR402BR407BR408AR409AR412AR413AR417AR422DR454CR500R502R507AR515BR508B |
| Function note () | With distributor |
| Plate pattern () | EM |
| Product group () | Heat exchangers |
| Q1 conn. type () | External thread connection |
| Q2 conn. type () | External connection |
| Q3 conn. type () | Solder connection |
| Q4 conn. type () | Solder connection |
| Packing format () | Single pack |
| Brazing material () | Copper brazing |
| Number of plates () | 70 |
| Type designation () | D118L-E |
| EU RoHS compliance () | Yes |
| Plate material no. () | AISI 316L |
| Q1 conn. size range () | G2-1 5/8 in |
| Q2 conn. size range () | G2-1 5/8 in |
| Q3 conn. size range () | 7/8 in |
| Q4 conn. size range () | 1 3/8 in |
| Product Name Description () | Micro Plate heat exchanger |
| Max working pressure [psi] () | 653 psi |
| Max. Working Pressure [bar] () | 45 bar |
| Quantity per packing format () | 1 pc |
| REACH Candidate List substances () | No |
| Design temperature range [°C] [max] () | 200 °C |
| Design temperature range [°C] [min] () | -196 °C |
| Design temperature range [°F] [max] () | 320 °F |
| Design temperature range [°F] [min] () | -390 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Heat Exchanger D118L-E-70 (STDPG)
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Function: Evaporator, Max working pressure [psi]: 653, Number of plates: 70, Brazing material: Copper brazing
