021H1293

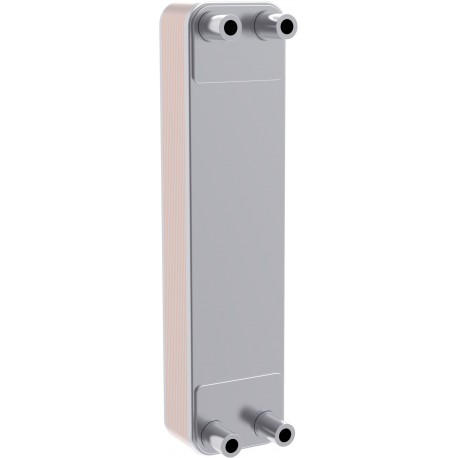

021H1293 DANFOSS REFRIGERATION Micro Plate heat exchanger D22L-40 (STDPG)
$0.00USD
3503 in stock
Key Specifications
EAN ():5702424273187
Type ():MPHE D22L
Volume ():5.863 Liter
Approval ():EACULASCRNKRAIARoHSUA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702424273187 |
| Type () | MPHE D22L |
| Volume () | 5.863 Liter |
| Approval () | EACULASCRNKRAIARoHSUA |
| Function () | Universal |
| Model no. () | 22 |
| Net weight () | 2.57 Kg |
| Application () | Universal |
| Gross weight () | 2.888 Kg |
| Refrigerants () | R11R113R114R12R123R1233zd(E)R1234yfR124R134aR152aR22R227eaR245faR290R401AR402AR402BR404AR407AR407BR407CR407FR408AR409AR410AR412AR413AR417AR422DR444BR448AR449AR450AR452AR452BR454BR454CR455AR500R502R507AR513AR515BR600aR508BR1233ze can't be used |
| Plate pattern () | M |
| Product group () | Heat exchangers |
| Q1 conn. type () | External thread connection |
| Q2 conn. type () | External connection |
| Q3 conn. type () | External connection |
| Q4 conn. type () | G External thread connection |
| Packing format () | Single pack |
| Brazing material () | Copper brazing |
| Number of plates () | 40 |
| Type designation () | D22L |
| EU RoHS compliance () | Yes |
| Plate material no. () | AISI 316L |
| Q1 conn. size range () | G3/4-5/8 in |
| Q2 conn. size range () | G3/4-5/8 in |
| Q3 conn. size range () | G3/4-5/8 in |
| Q4 conn. size range () | G3/4-5/8 in |
| Product Name Description () | Micro Plate heat exchanger |
| Max working pressure [psi] () | 653 psi |
| Max. Working Pressure [bar] () | 45 bar |
| Quantity per packing format () | 1 pc |
| REACH Candidate List substances () | No |
| Design temperature range [°C] [max] () | 200 °C |
| Design temperature range [°C] [min] () | -196 °C |
| Design temperature range [°F] [max] () | 320 °F |
| Design temperature range [°F] [min] () | -390 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Heat Exchanger D22L-40 (STDPG)
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Function: Universal, Max working pressure [psi]: 653, Number of plates: 40, Brazing material: Copper brazing
