021H1289

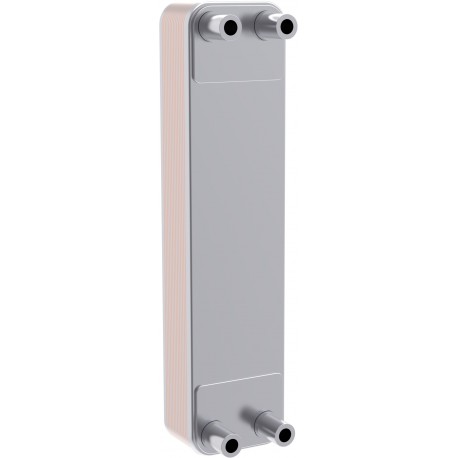

021H1289 DANFOSS REFRIGERATION Micro Plate heat exchanger D22L-20 (STDPG)
$0.00USD
3297 in stock
Key Specifications
EAN ():5702424273224
Type ():MPHE D22L
Volume ():4.165 Liter
Approval ():EACULASCRNKRAIARoHSUA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702424273224 |
| Type () | MPHE D22L |
| Volume () | 4.165 Liter |
| Approval () | EACULASCRNKRAIARoHSUA |
| Function () | Universal |
| Equipment () | Null |
| Model No. () | 22 |
| Net weight () | 1.67 Kilogram |
| Application () | Universal |
| Gross weight () | 1.916 Kilogram |
| PED category () | Art. 4, par. 3 |
| Refrigerants () | R1233zd(E)R1234yfR134aR22R245faR290R404AR407CR410AR444BR448AR449AR450AR452BR454BR454CR455AR507AR513AR515BR1234zeR454A |
| UL evaluated () | Yes |
| Function note () | Null |
| H1 conn. size () | Null |
| H1 conn. type () | Null |
| H2 conn. size () | Null |
| H2 conn. type () | Null |
| H3 conn. size () | Null |
| H3 conn. type () | Null |
| H4 conn. size () | Null |
| H4 conn. type () | Null |
| H5 conn. size () | Null |
| H5 conn. type () | Null |
| H6 conn. size () | Null |
| H6 conn. type () | Null |
| Plate pattern () | M |
| Product group () | Heat exchangers |
| Q1 conn. type () | External thread connection |
| Q2 conn. type () | External connection |
| Q3 conn. type () | External connection |
| Q4 conn. type () | G External thread connection |
| Q5 conn. type () | Null |
| Q6 conn. type () | Null |
| Packing format () | Single pack |
| Brazing material () | Copper brazing |
| In scope of WEEE () | No |
| Number of plates () | 20 |
| Type designation () | D22L |
| EU RoHS compliance () | Yes |
| Plate material no. () | AISI 316L |
| UK RoHS compliance () | Yes |
| Q1 conn. size range () | G3/4-5/8 in |
| Q2 conn. size range () | G3/4-5/8 in |
| Q3 conn. size range () | G3/4-5/8 in |
| Q4 conn. size range () | G3/4-5/8 in |
| Q5 conn. size range () | Null |
| Q6 conn. size range () | Null |
| China RoHS compliance () | Yes |
| EU RoHS exemption clause () | No |
| Product Name Description () | Micro Plate heat exchanger |
| UK RoHS exemption clause () | No |
| Max working pressure [psi] () | 653 psi |
| Max. Working Pressure [bar] () | 45 bar |
| Quantity per packing format () | 1 pc |
| REACH Candidate List substances () | No |
| Design temperature range [°C] [max] () | 200 °C |
| Design temperature range [°C] [min] () | -196 °C |
| Design temperature range [°F] [max] () | 320 °F |
| Design temperature range [°F] [min] () | -390 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Heat Exchanger D22L-20 (STDPG)
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Max. Working Pressure [bar]: 45.0, Universal, Function: Universal, Brazing material: Copper brazing
