021B6748

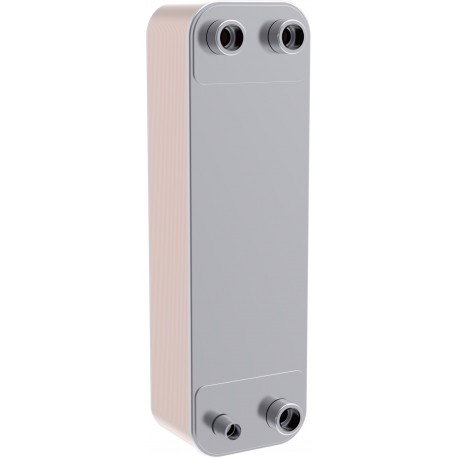

021B6748 DANFOSS REFRIGERATION Brazed plate heat exchanger, BPHE B3-095-80-4.5-HQ
$0.00USD
4447 in stock
Key Specifications
EAN ():5702424279882
Type ():BPHE B3-095
Volume ():50.094 Liter
Approval ():EACPEDULASCRNKRAIARoHSUAUKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702424279882 |
| Type () | BPHE B3-095 |
| Volume () | 50.094 Liter |
| Approval () | EACPEDULASCRNKRAIARoHSUAUKCA |
| Equipment () | Stud |
| Model no. () | 095 |
| Net weight () | 40.52 Kg |
| Application () | Universal |
| Gross weight () | 42.092 Kg |
| Refrigerants () | R11R113R114R12R123R1233zd(E)R1234yfR1234zeR124R134aR152aR22R227eaR245faR290R401AR402AR402BR404AR407AR407BR407CR407FR408AR409AR410AR412AR413AR417AR422DR444BR448AR449AR450AR452AR452BR454BR454CR455AR500R502R507AR513AR515BR600aR508B |
| Function note () | With distributor |
| H1 conn. type () | Victaulic connection |
| H2 conn. size () | 76.1 mm |
| H2 conn. type () | Victaulic connection |
| Plate pattern () | H |
| Product group () | Heat exchangers |
| Q1 conn. type () | G Internal thread connection |
| Q2 conn. type () | G Internal thread connection |
| Q3 conn. type () | Solder connection |
| Q4 conn. type () | Solder connection |
| Packing format () | Single pack |
| Brazing material () | Copper brazing |
| Number of plates () | 80 |
| Type designation () | B3-095 |
| EU RoHS compliance () | Yes |
| Plate material no. () | AISI 316L |
| Q1 conn. size range () | G1/2 |
| Q2 conn. size range () | G1/2 |
| Q3 conn. size range () | 1 1/8 in |
| Q4 conn. size range () | 1 5/8 in |
| Product Name Description () | Brazed plate heat exchanger |
| Max working pressure [psi] () | 653 psi |
| Max. Working Pressure [bar] () | 45 bar |
| Quantity per packing format () | 1 pc |
| REACH Candidate List substances () | No |
| Design temperature range [°C] [max] () | 200 °C |
| Design temperature range [°C] [min] () | -196 °C |
| Design temperature range [°F] [max] () | 320 °F |
| Design temperature range [°F] [min] () | -390 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Brazed plate heat exchanger, Number of plates: 80, BPHE B3-095
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Brazing material: Copper brazing, Max. Working Pressure [bar]: 45.0, Q1 conn. size range: G1/2, Q2 conn. size range: G1/2, Q3 conn. size range: 1 1/8 in, Q4 conn. size range: 1 5/8 in
