021B2058

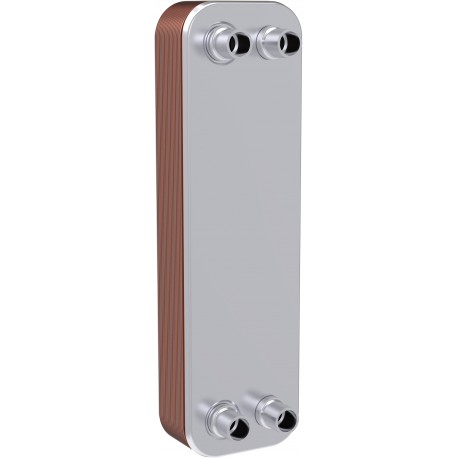

021B2058 DANFOSS REFRIGERATION Brazed plate heat exchanger, BPHE B3-030-50-3.0HQ
$0.00USD
4021 in stock
Key Specifications
EAN ():5702424283407
Type ():BPHE B3-030
Volume ():7.65 Liter
Approval ():EACULASCRNKRAIAPEDRoHSUAUKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702424283407 |
| Type () | BPHE B3-030 |
| Volume () | 7.65 Liter |
| Approval () | EACULASCRNKRAIAPEDRoHSUAUKCA |
| Equipment () | Stud |
| Model No. () | 030 |
| Net weight () | 5.5 Kg |
| Application () | Universal |
| Gross weight () | 5.602 Kg |
| Refrigerants () | R11R113R114R12R123R1233zd(E)R1234yfR1234zeR124R134aR152aR22R227eaR245faR401AR402AR402BR404AR407AR407BR407CR407FR408AR409AR412AR413AR417AR422DR444BR448AR449AR450AR452AR454CR455AR500R502R507AR513AR515BR600aR508B |
| Function note () | With distributor |
| Plate pattern () | H |
| Product group () | Heat exchangers |
| Q1 conn. type () | NPT External thread connection |
| Q2 conn. type () | NPT External thread connection |
| Q3 conn. type () | Solder connection |
| Q4 conn. type () | Solder connection |
| Packing format () | Single pack |
| Brazing material () | Copper brazing |
| Number of plates () | 50 |
| Type designation () | B3-030 |
| EU RoHS compliance () | Yes |
| Plate material no. () | AISI 316L |
| Q1 conn. size range () | NPT3/4 |
| Q2 conn. size range () | NPT3/4 |
| Q3 conn. size range () | 5/8 in |
| Q4 conn. size range () | 1 1/8 in |
| Product Name Description () | Brazed plate heat exchanger |
| Max working pressure [psi] () | 435 psi |
| Max. Working Pressure [bar] () | 30 bar |
| Quantity per packing format () | 1 pc |
| REACH Candidate List substances () | No |
| Design temperature range [°C] [max] () | 200 °C |
| Design temperature range [°C] [min] () | -196 °C |
| Design temperature range [°F] [max] () | 320 °F |
| Design temperature range [°F] [min] () | -390 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Brazed plate heat exchanger, Number of plates: 50, BPHE B3-030
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Brazing material: Copper brazing, Max. Working Pressure [bar]: 30.0, Q1 conn. size range: NPT3/4, Q2 conn. size range: NPT3/4, Q3 conn. size range: 5/8 in, Q4 conn. size range: 1 1/8 in
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
