In Stock Hot Product
020-2002

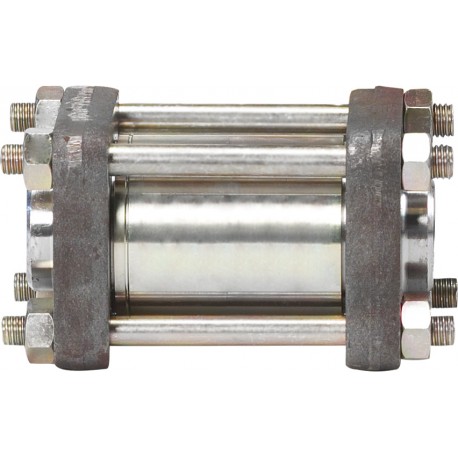

020-2002 DANFOSS REFRIGERATION Check valve
$0.00USD
3236 in stock
Key Specifications
EAN ():5702422048305
Type ():NRVA 25
Volume ():1.607 Liter
Net weight ():3.2 Kg
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702422048305 |
| Type () | NRVA 25 |
| Volume () | 1.607 Liter |
| Net weight () | 3.2 Kg |
| Fluid Group () | 1 |
| Gross weight () | 3.206 Kg |
| PED category () | Art. 3, par. 3 |
| Refrigerants () | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R507AR1233zd(E)R1234yfR1234ze(E)R125R152aR227eaR236faR245faR32R407HR413AR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR512AR513AR513BR515AR515BR516A |
| Product group () | Check valves |
| Packing format () | Multi pack |
| Connection type () | Butt weld |
| Kv value [m³/h] () | 19 m³/h |
| SCIP dossier no. () | 003a1d2e-c9cb-476a-a567-837ffbab450a |
| Cv value [gal/min] () | 22.04 gal/min |
| EU RoHS compliance () | Yes with exemptions |
| Connection standard () | EN 10220 |
| Product description () | Check Valve |
| Connection size [in] () | 1 in |
| Connection size [mm] () | 25 mm |
| Product Name Description () | Check valve |
| Max. Working Pressure [bar] () | 40 bar |
| Quantity per packing format () | 6 pc |
| Max. Working Pressure [psig] () | 580 psig |
| Temperature range [°C] [max] () | 140 °C |
| Temperature range [°C] [min] () | -50 °C |
| Temperature range [°F] [max] () | 284 °F |
| Temperature range [°F] [min] () | -58 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
NRVA 25 Check Valve 1" Weld
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Connection standard: EN 10220, Connection type: Butt weld, Connection size [mm]: 25, Max. Working Pressure [bar]: 40.0
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
