020-1027

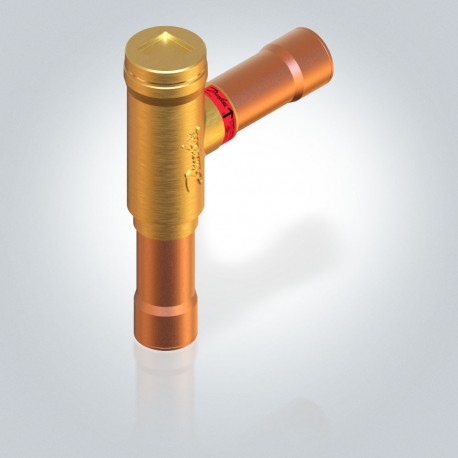

020-1027 DANFOSS REFRIGERATION Check valve
$0.00USD
4524 in stock
Key Specifications
EAN ():5702422062622
Type ():NRV 35s
Design ():Piston
Volume ():3.488 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702422062622 |
| Type () | NRV 35s |
| Design () | Piston |
| Volume () | 3.488 Liter |
| Approval () | C UL US LISTEDCEEACUKCA |
| Direction () | Angleway |
| Net weight () | 1.309 Kg |
| Fluid Group () | 2 |
| Gross weight () | 1.452 Kg |
| PED category () | I |
| Refrigerants () | R134aR22/R407CR407AR407FR410AR448AR449AR450AR452AR513AR1234ze(E)R404A/R507AR1233zd(E)R1234yfR1270R290R407HR449BR452BR454AR454BR454CR455AR515BR516AR600R600aR32R170 |
| Body material () | Brass |
| Product group () | Check valves |
| Flow direction () | Single-flow |
| Packing format () | Multi pack |
| Inlet size [mm] () | 42 mm |
| Connection notes () | Oversize |
| Kv value [m³/h] () | 29 m³/h |
| Outlet size [mm] () | 42 mm |
| SCIP dossier no. () | b3a34751-5701-488e-98f4-24be945efdc1 |
| Cv value [gal/min] () | 33.52 gal/min |
| EU RoHS compliance () | No - out of scope |
| Connection material () | Copper |
| Inlet connection type () | Solder, ODF |
| Oil free refrigerants () | R1234ze(E)R134aR513AR515B |
| UL approval file name () | REFRIGERANT VALVE 53R0 |
| Outlet connection type () | Solder, ODF |
| Flow direction indicator () | Embossed 1-way arrow |
| Lubricants compatibility () | Oilfree applications |
| Min. Pressure drop [bar] () | 0.04 bar |
| Min. Pressure drop [psi] () | 0.6 psi |
| Product Name Description () | Check valve |
| UL approved refrigerants () | R134aR22R404AR407AR407CR407FR410AR448AR449AR450AR452AR507AR513AR1233zd(E)R1234yfR1234ze(E)R1270R170R290R32R407HR449BR452BR454AR454BR454CR455AR515BR516AR600R600a |
| Max. Working Pressure [bar] () | 46 bar |
| Quantity per packing format () | 6 pc |
| Max. Working Pressure [psig] () | 667 psig |
| Rated cap cond, Hot gas [SI] () | tcond=30 °Ctdisc=80 °Ctevap=-10 °Cthotgas=60 °Ctsub=5K |
| Rated cap cond, Hot gas [IMP] () | tcond=86 °Ftdisc=176 °Ftevap=14 °Fthotgas=140 °Ftsub=9 °F |
| Rated cap cond, Liq. cap [SI] () | tcond=30 °Ctevap=-10 °Ctsub=5K |
| Temperature range [°C] [max] () | 140 °C |
| Temperature range [°C] [min] () | -50 °C |
| Temperature range [°F] [max] () | 285 °F |
| Temperature range [°F] [min] () | -58 °F |
| Rated cap cond, Liq. cap [IMP] () | tcond=86 °Ftevap=14 °Ftsub=9 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
NRV 35s Check Valve AW M/6
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Solder, ODF, Inlet size [mm]: 42.00, Outlet connection type: Solder, ODF, Outlet size [mm]: 42.00, Direction: Angleway, Packing format: Multi pack
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
