020-1015

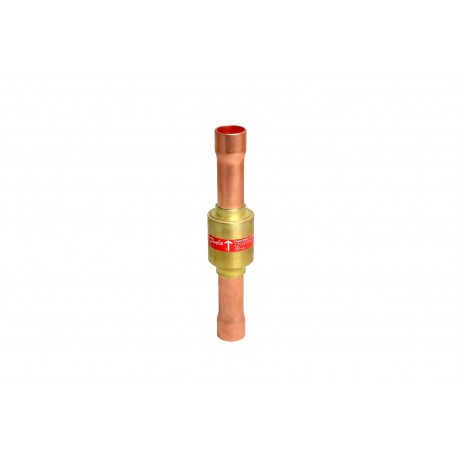

020-1015 DANFOSS REFRIGERATION Check valve
$0.00USD
4049 in stock
Key Specifications
EAN:5702422048480
Design:Piston
Approval:C UL US LISTEDEAC
Direction:Straightway
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702422048480 |
| Design | Piston |
| Approval | C UL US LISTEDEAC |
| Direction | Straightway |
| Net weight | 0.06 Kg |
| Gross weight | 0.07 Kg |
| Product name | Check valve |
| Product type | NRV 10s |
| Refrigerants | R1234yfR1234zeR1270R134aR22/R407CR290R32R404A/R507R407AR407FR410AR448AR449AR450AR452AR452BR454BR513AR600R600a |
| Body material | Brass |
| Product Group | Check valves |
| Flow direction | Single-flow |
| Packing format | Multi pack |
| Inlet size [mm] | 10 mm |
| Kv value [m³/h] | 1.2 m3/h |
| Outlet size [mm] | 10 mm |
| Identical product | 020-0136 |
| Cv value [gal/min] | 1.39 gal/min |
| Connection material | Copper |
| Product family name | NRV |
| Inlet connection type | SOLDER, ODF |
| Outside diameter [mm] | 10 mm |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| Outlet connection type | SOLDER, ODF |
| System line application | Discharge lineLiquid feed lineLiquid lineSuction lineWet return line |
| Flow direction indicator | On product label |
| Min. Pressure drop [bar] | 0.07 bar |
| Min. Pressure drop [psi] | 1 psi |
| Max. Working Pressure [bar] | 46 bar |
| Quantity per packing format | 25 pc |
| Max. Working Pressure [psig] | 667 psig |
| Rated cap cond, Hot gas [SI] | tcond=30 °Ctdisc=80 °Ctevap=-10 °Cthotgas=60 °Ctsub=5K |
| Rated cap cond, Hot gas [IMP] | tcond=86 °Ftdisc=176 °Ftevap=14 °Fthotgas=140 °Ftsub=9 °F |
| Rated cap cond, Liq. cap [SI] | tcond=30 °Ctevap=-10 °Ctsub=5K |
| Temperature range [°C] [Max] | 140 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 285 °F |
| Temperature range [°F] [Min] | -58 °F |
| EN13463-3 ignit. source assess | Yes |
| Rated cap cond, Liq. cap [IMP] | tcond=86 °Ftevap=14 °Ftsub=9 °F |
