018F8701

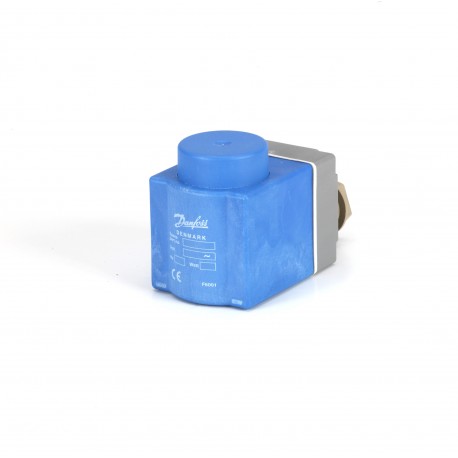

018F8701 DANFOSS REFRIGERATION Solenoid coil
$0.00USD
4047 in stock
Key Specifications
EAN ():5702428024419
Type ():BE230AS
Colour ():Blue
Volume ():0.45 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428024419 |
| Type () | BE230AS |
| Colour () | Blue |
| Volume () | 0.45 Liter |
| Approval () | LLC CDC TYSKCEEACUKCA |
| Compliance () | EN 60730-1 |
| Net weight () | 0.308 Kg |
| Duty rating () | Continuous |
| Serviceable () | No |
| Gross weight () | 0.323 Kg |
| Actuator size () | 13.5 mm |
| Product group () | Solenoid valves |
| Coil fastening () | Clip-on |
| Frequency [Hz] () | 50 Hz |
| Packing format () | Industrial pack |
| Coil connection () | Connection Box |
| SCIP dossier no. () | 23785618-b379-4da7-a913-ecd40c8fae6d |
| Type designation () | BE230AS |
| Identical product () | 018F6701 |
| Spare part number () | 018F6176 |
| EU RoHS compliance () | No - out of scope |
| Parts Program name () | EV210BEV212BEV220B 15 - 50EV220B 6 - 22EV220B 65 - 100EV222BEV224BEV227BEV250BEV251B |
| Enclosure rating IP () | IP67 |
| Product accessories () | Solenoid coil accessories |
| Coil design standard () | VDE 0580 |
| Conductor area [mm2] () | 0.75 - 1.5 mm2 |
| Electrical connector () | Screwed cable entry |
| Electrical connection () | Terminal box |
| Power cons Dual 50Hz [W] () | 11 W |
| Product Name Description () | Solenoid coil |
| Cable diameter [mm] [max] () | 11 mm |
| Cable diameter [mm] [min] () | 6 mm |
| Power cons Dual 50Hz [VA] () | 19 mW |
| SCIP dossier product name () | Solenoid coils |
| Electrical connection size () | Pg 13.5 |
| Power consumption [W] 50Hz () | 12 W |
| Rel. Humidity [% RH] [max] () | 100 % |
| Rel. Humidity [% RH] [min] () | 0 % |
| Power consumption 50Hz [VA] () | 22 VA |
| Quantity per packing format () | 50 pc |
| Supply voltage 50Hz Max [V] () | 230 V |
| Supply voltage 50Hz Min [V] () | 220 V |
| Supply voltage [V] AC [max] () | 230 V |
| Supply voltage [V] AC [min] () | 220 V |
| Coil winding insulation class () | Class H to IEC 85 |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Ambient temperature range [°C] [max] () | 80 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 175 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Solenoid coil, BE230AS, Terminal box, Supply voltage [V] AC: 220 - 230, Industrial pack
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Electrical connection: Terminal box, Supply voltage [V] AC: 220 - 230, Frequency [Hz]: 50 Hz, Enclosure rating IP: IP67
