In Stock Hot Product
018F7914

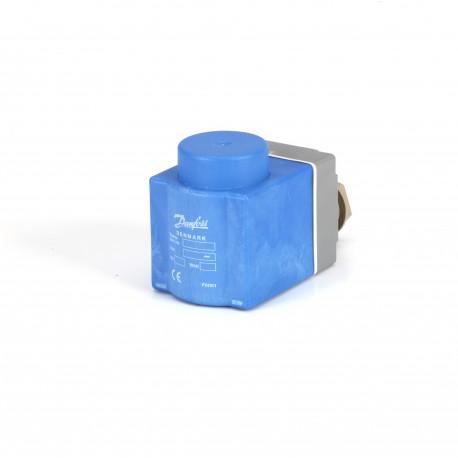

018F7914 DANFOSS REFRIGERATION Solenoid coil, BE024DS
$0.00USD
4219 in stock
Key Specifications
EAN ():5702428170918
Type ():Magnetic coil
Color ():Blue
Colour ():Blue
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428170918 |
| Type () | Magnetic coil |
| Color () | Blue |
| Colour () | Blue |
| Volume () | 0.308 Liter |
| Approval () | LLC CDC TYSK |
| Compliance () | EN 60730-1 |
| Net weight () | 0.327 Kg |
| Description () | Coil BE024DS 24V DC Box |
| Duty rating () | Continuous |
| Serviceable () | No |
| Gross weight () | 0.352 Kg |
| Product group () | Accessory |
| Coil fastening () | Clip-on |
| Frequency [Hz] () | DC |
| Packing format () | Multi pack |
| Coil connection () | Connection Box |
| SCIP dossier no. () | 23785618-b379-4da7-a913-ecd40c8fae6d |
| Type designation () | BE024DS |
| Actuator size [mm] () | 13.5 mm |
| Parts Program name () | EV210BEV212BEV220B 15 - 50EV220B 6 - 22EV220B 65 - 100EV222BEV224BEV227BEV250BEV251BEV258B |
| Cable diameter [mm] () | 6 mm |
| Enclosure rating IP () | IP67 |
| Product accessories () | Solenoid coil accessories |
| Product description () | Magnetic coils |
| Coil design standard () | VDE 0580 |
| Conductor area [mm2] () | 0.75 - 1.5 mm2 |
| Electrical connection () | Terminal box |
| Supply voltage [V] DC () | 24 V |
| Power consumption [W] DC () | 16 W |
| SCIP dossier product name () | Solenoid coils |
| Electrical connection size () | Pg 13.5 |
| Rel. Humidity [% RH] [min] () | 0 % |
| Quantity per packing format () | 32 pc |
| Coil winding insulation class () | Class H to IEC 85 |
| Ambient temperature range [°C] () | 50 °C |
| Ambient temperature range [°F] () | 120 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
Magnetic coils, BE024DS
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Electrical connection: Terminal box, Supply voltage [V] DC: 24, Enclosure rating IP: IP67
