018F7908

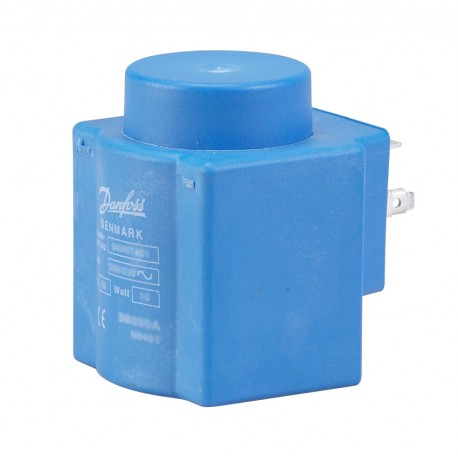

018F7908 DANFOSS REFRIGERATION Solenoid coil, BY240CS
$0.00USD
3307 in stock
Key Specifications
EAN ():5702428170963
Type ():Magnetic coil
Color ():Blue
Colour ():Blue
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428170963 |
| Type () | Magnetic coil |
| Color () | Blue |
| Colour () | Blue |
| Volume () | 0.268 Liter |
| Approval () | UL approval |
| Compliance () | EN 60730-1 |
| Net weight () | 0.266 Kg |
| Description () | Coil BY240CS 230/208-240V 50/60Hz |
| Serviceable () | No |
| Gross weight () | 0.276 Kg |
| Product group () | Accessory |
| Coil fastening () | Clip-on |
| Frequency [Hz] () | 50/60 Hz |
| Packing format () | Multi pack |
| Coil connection () | DIN Spade |
| SCIP dossier no. () | e1534687-9129-4796-8151-656dd16d6529 |
| Type designation () | BY240CS |
| Actuator size [mm] () | 13.5 mm |
| Parts Program name () | EV210BEV212BEV220B 15 - 50EV220B 6 - 22EV220B 65 - 100EV222BEV250BEV251B |
| Enclosure rating IP () | IP00 |
| Further information () | UL approved coil |
| Product accessories () | Solenoid coil accessories |
| Product description () | Magnetic coils |
| Coil design standard () | VDE 0580 |
| Electrical connector () | 3 x spades |
| Electrical connection () | DIN Spade |
| Supply voltage [V] AC () | 208 V |
| UL approval file name () | MH29671 |
| Rel. Humidity conditions () | Non-condensation |
| SCIP dossier product name () | RD |
| Electrical connection size () | 6.3 mm x 0.8 mm |
| Power consumption [W] 50Hz () | 16 W |
| Power consumption [W] 60Hz () | 14 W |
| Rel. Humidity [% RH] [min] () | 0 % |
| Power consumption 50Hz [VA] () | 32 VA |
| Power consumption 60Hz [VA] () | 28 VA |
| Quantity per packing format () | 50 pc |
| Supply voltage 50Hz Max [V] () | 230 V |
| Supply voltage 60Hz Max [V] () | 240 V |
| Supply voltage 60Hz Min [V] () | 208 V |
| Coil winding insulation class () | Class H to IEC 85 |
| Electrical connection standard () | EN175301-803 |
| Ambient temperature range [°C] () | 50 °C |
| Ambient temperature range [°F] () | 120 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
Magnetic coils, BY240CS
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Electrical connection: DIN Spade, Supply voltage [V] AC: 208, Enclosure rating IP: IP00
