018F6265

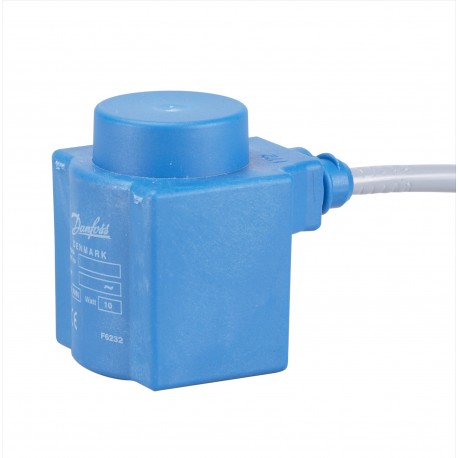

018F6265 DANFOSS REFRIGERATION Solenoid coil
$0.00USD
3522 in stock
Key Specifications
EAN:5702428024938
Colour:Blue
Approval:LLC CDC TYSK
Compliance:EN 60730-1
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428024938 |
| Colour | Blue |
| Approval | LLC CDC TYSK |
| Compliance | EN 60730-1 |
| Net weight | 0.3 Kg |
| Duty rating | Continuous |
| Serviceable | No |
| Gross weight | 0.34 Kg |
| Product name | Solenoid coil |
| Product type | BF024BS |
| Actuator size | 13.5 mm |
| Product Group | Solenoid valves |
| Coil fastening | Clip-on |
| Frequency [Hz] | 60 Hz |
| Packing format | Multi pack |
| Coil connection | CABLE |
| Cable length [m] | 1 m |
| Type designation | BF024BS |
| Cable length [in] | 40 in |
| Spare part number | 018F6265 |
| Parts Program name | EV210BEV212BEV220B 15 - 50EV220B 6 - 22EV220B 65 - 100EV222BEV224BEV227BEV250BEV251B |
| Cable diameter [mm] | 6.6 mm |
| Enclosure rating IP | IP67 |
| Further information | Moulded cable |
| Product accessories | Solenoid coil accessories |
| Coil design standard | VDE 0580 |
| Conductor area [mm2] | 3 x 0.75 mm2 |
| Electrical connector | 3 core cable |
| Electrical connection | Cable |
| Supply voltage [V] AC | 24 V |
| Power consumption [W] 60Hz | 14 W |
| Rel. Humidity [% RH] [Max] | 100 % |
| Rel. Humidity [% RH] [Min] | 0 % |
| Power consumption 60Hz [VA] | 25 VA |
| Quantity per packing format | 24 pc |
| Supply voltage 60Hz Max [V] | 24 V |
| Coil winding insulation class | Class H to IEC 85 |
| Ambient temperature range [°C] [Max] | 80 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 175 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
Product Description
Coil BF024BS 24V 60Hz 1m Cable
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
