018F4122

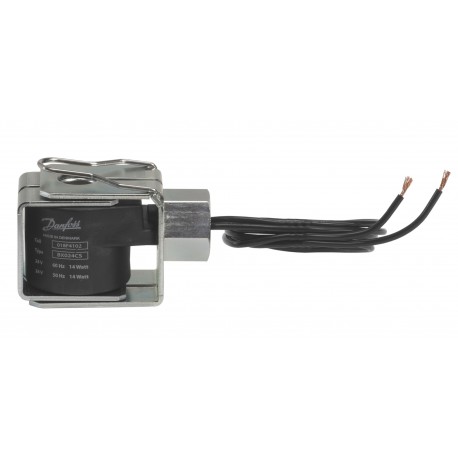

018F4122 DANFOSS REFRIGERATION Solenoid coil
$0.00USD
3067 in stock
Key Specifications
EAN ():5702428841306
Type ():BX240CS
Colour ():Black
Volume ():0.292 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428841306 |
| Type () | BX240CS |
| Colour () | Black |
| Volume () | 0.292 Liter |
| Approval () | C UL US LISTEDLLC CDC TYSK |
| Compliance () | UL 429 |
| Net weight () | 0.325 Kg |
| Serviceable () | No |
| Frame design () | Ext. metal frame |
| Gross weight () | 0.334 Kg |
| Actuator size () | 13.5 mm |
| Product group () | Solenoid valves |
| Coil fastening () | Clip-on |
| Frequency [Hz] () | 50/60 Hz |
| Packing format () | Multi pack |
| Coil connection () | 1/2 in Conduit Hub |
| Cable length [m] () | 0.5 m |
| Pollution degree () | 3 |
| Type designation () | BX240CS |
| Cable length [in] () | 20 in |
| Spare part number () | 018F4122 |
| EU RoHS compliance () | No - out of scope |
| Parts Program name () | EV210BEV215BEV220B 15 - 50EV220B 6 - 22EV225BEV245BEV250B |
| Enclosure rating IP () | IP54 |
| Product accessories () | Solenoid coil accessories |
| Coil design standard () | UL 429 |
| Electrical connection () | Conduit hub |
| Supply voltage [V] AC () | 230 V |
| UL approval file name () | MH29671 |
| Product Name Description () | Solenoid coil |
| Rel. Humidity conditions () | Non-condensation |
| Electrical conn. comments () | Flying leads |
| Enclosure rating Nema (~) () | 4 |
| Electrical connection size () | 1/2 in |
| Power consumption [W] 50Hz () | 17 W |
| Power consumption [W] 60Hz () | 14 W |
| Rel. Humidity [% RH] [max] () | 97 % |
| Rel. Humidity [% RH] [min] () | 0 % |
| Power consumption 50Hz [VA] () | 31 VA |
| Power consumption 60Hz [VA] () | 26 VA |
| Quantity per packing format () | 35 pc |
| Supply voltage 50Hz Max [V] () | 230 V |
| Supply voltage 60Hz Max [V] () | 240 V |
| Supply voltage 60Hz Min [V] () | 208 V |
| Coil winding insulation class () | Class H to IEC 85 |
| Electrical connection standard () | UL50E CLASS 4 |
| REACH Candidate List substances () | No |
| Ambient temperature range [°C] [max] () | 50 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 120 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Coil BX240CS 230/208-240V 50/60Hz 0.5m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Electrical connection: Conduit hub, Supply voltage [V] AC: 230, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP54
