017D004466

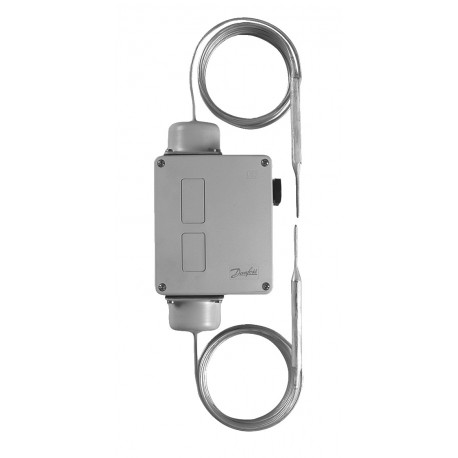

017D004466 DANFOSS REFRIGERATION Thermostat
$0.00USD
3085 in stock
Key Specifications
EAN ():5702428042758
Type ():RT271
Volume ():5.087 Liter
Approval ():CCCCEEACLVDPZHRMRSRoHSRoHS ChinaTYSKLLC CDC EURO-TYSKUKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428042758 |
| Type () | RT271 |
| Volume () | 5.087 Liter |
| Approval () | CCCCEEACLVDPZHRMRSRoHSRoHS ChinaTYSKLLC CDC EURO-TYSKUKCA |
| Net weight () | 2.003 Kg |
| Sensor type () | Cylindrical Remote Sensor |
| Serviceable () | Contact systems |
| Gross weight () | 2.281 Kg |
| Product group () | Switches and thermostats |
| Contact rating () | AC15=3 A, 400 VAC1=10 A, 400 VDC13=12 W, 220 VAC3=4 A, 400 VLR=28 A, 400 V |
| Packing format () | Multi pack |
| Reset function () | Auto |
| Contact function () | SPDT |
| SCIP dossier no. () | c4c20ce6-4a07-4caa-9394-1e7d8b13ffec |
| EU RoHS compliance () | Yes |
| Enclosure rating IP () | IP66 |
| Product accessories () | Generic accessoriesSwitches accessories |
| Product description () | Thermostat |
| Pressure Male/Female () | Male |
| Electrical connection () | Screwed cable entry |
| Relay release time [s] () | 0 s |
| Pressure connection size () | 3/8 |
| Pressure connection type () | G |
| Product Name Description () | Thermostat |
| Electrical spec. standard () | EN 60947-4/-5 |
| Sensor size (Ø x L) [in] () | 3/8 x 7 3/16 in |
| Sensor size (Ø x L) [mm] () | 9.5 x 182 mm |
| Capillary tube length [mm] () | 10000 mm |
| Contact differential [°C] () | 3 °C |
| EN 60947 wiring properties () | Flex, ferrules: 0.2-1.5 mm2Flex, no ferrules: 0.2-2.5 mm2Solid/stranded: 0.2-2.5 mm2 |
| Electrical connection size () | 2xPg 13.5 |
| Quantity per packing format () | 8 pc |
| Electrical conn. Male/Female () | Female |
| Pressure connection standard () | ISO 228-1 |
| Max. sensor temperature [°C] () | 200 °C |
| Max. sensor temperature [°F] () | 392 °F |
| Temperature range [°C] [max] () | 100 °C |
| Temperature range [°C] [min] () | 20 °C |
| Temperature range [°F] [max] () | 210 °F |
| Temperature range [°F] [min] () | 70 °F |
| Cap. tube length fraction [in] () | 393 11/16 in |
| EN 60947 electrical properties () | Pollution degree: 3Rated impulse voltage: 4 kVShort circuit prot, fuse: 10AInsulation: 400V |
| Electrical connection standard () | DIN 40430 |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Ambient temperature range [°C] [max] () | 70 °C |
| Ambient temperature range [°C] [min] () | -50 °C |
| Ambient temperature range [°F] [max] () | 158 °F |
| Ambient temperature range [°F] [min] () | -58 °F |
| Diff. temp. setting range [°C] [max] () | 20 °C |
| Diff. temp. setting range [°C] [min] () | 0 °C |
| Diff. temp. setting range [°F] [max] () | 68 °F |
| Diff. temp. setting range [°F] [min] () | 0 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
RT271 Thermostat M/8
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Temperature range [°C]: 20 - 100, Reset function: Auto, Contact function: SPDT, Sensor type: Cylindrical Remote Sensor, Capillary tube length [mm]: 10000, Enclosure rating IP: IP66
