017D003166

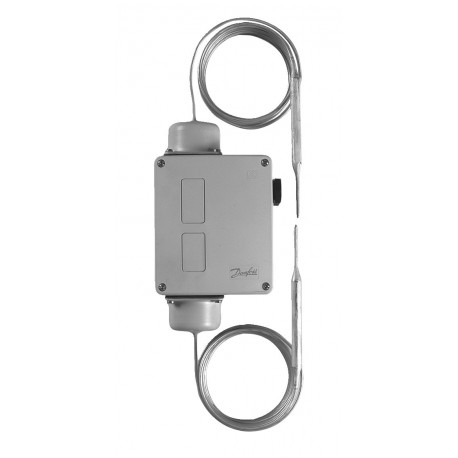

017D003166 DANFOSS REFRIGERATION Thermostat
$0.00USD
4174 in stock
Key Specifications
EAN:5702428042789
Approval:CCCCEEACLVDPZHRMRSRoHSRoHS ChinaTYSK
Net weight:1.42 Kg
Sensor type:Cylindrical Remote Sensor
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428042789 |
| Approval | CCCCEEACLVDPZHRMRSRoHSRoHS ChinaTYSK |
| Net weight | 1.42 Kg |
| Sensor type | Cylindrical Remote Sensor |
| Serviceable | Contact systems |
| Gross weight | 1.7 Kg |
| Product name | Thermostat |
| Product type | RT270 |
| Product Group | Switches and thermostats |
| Contact rating | AC15=3 A, 400 VAC1=10 A, 400 VDC13=12 W, 220 VAC3=4 A, 400 VLR=28 A, 400 V |
| Packing format | Multi pack |
| Reset function | Auto |
| Contact function | SPDT |
| Ammonia application | No |
| Enclosure rating IP | IP66 |
| Product accessories | Generic accessoriesSwitches accessories |
| Product description | Thermostat |
| Product family name | RT thermostat |
| Pressure Male/Female | Male |
| Electrical connection | Screwed cable entry |
| Pressure connection size | 3/8 |
| Pressure connection type | G |
| Electrical spec. standard | EN 60947-4/-5 |
| Sensor size (Ø x L) [in] | 3/8 x 4 1/4 in |
| Sensor size (Ø x L) [mm] | 9.5 x 110 mm |
| Capillary tube length [mm] | 5000 mm |
| Contact differential [°C] | 2 °C |
| EN 60947 wiring properties | Flex, ferrules: 0.2-1.5 mm2Flex, no ferrules: 0.2-2.5 mm2Solid/stranded: 0.2-2.5 mm2 |
| Electrical connection size | 2xPg 13.5 |
| Quantity per packing format | 9 pc |
| Electrical conn. Male/Female | Female |
| Pressure connection standard | ISO 228-1 |
| Max. sensor temperature [°C] | 65 °C |
| Max. sensor temperature [°F] | 149 °F |
| Temperature range [°C] [Max] | 40 °C |
| Temperature range [°C] [Min] | -30 °C |
| Temperature range [°F] [Max] | 105 °F |
| Temperature range [°F] [Min] | -20 °F |
| Cap. tube length fraction [in] | 196 7/8 in |
| EN 60947 electrical properties | Insulation: 400VPollution degree: 3Rated impulse voltage: 4 kVShort circuit prot, fuse: 10A |
| Electrical connection standard | DIN 40430 |
| Ambient temperature range [°C] [Max] | 70 °C |
| Ambient temperature range [°C] [Min] | -50 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -58 °F |
| Diff. temp. setting range [°C] [Max] | 15 °C |
| Diff. temp. setting range [°C] [Min] | 0 °C |
| Diff. temp. setting range [°F] [Max] | 59 °F |
| Diff. temp. setting range [°F] [Min] | 0 °F |
Product Description
RT270 Thermostat M/9
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
