In Stock Hot Product
017D001666

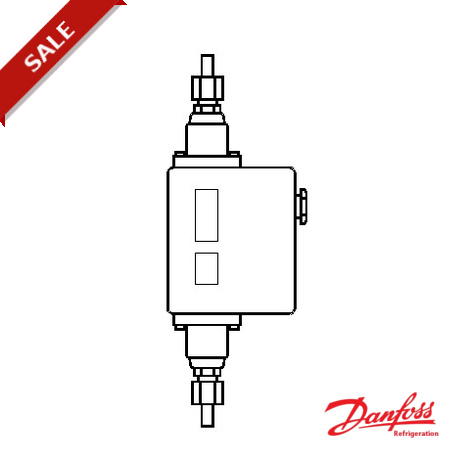

017D001666 DANFOSS REFRIGERATION Differential pressure switch
$0.00USD
3534 in stock
Key Specifications
EAN:5702428042864
Approval:CCCCEEACKRLVDPZHRINARMRSRoHSRoHS ChinaTYSK
Net weight:1.09 Kg
Serviceable:Contact systems
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428042864 |
| Approval | CCCCEEACKRLVDPZHRINARMRSRoHSRoHS ChinaTYSK |
| Net weight | 1.09 Kg |
| Serviceable | Contact systems |
| Gross weight | 1.17 Kg |
| Product name | Differential pressure switch |
| Product type | RT260A |
| Refrigerants | R11R12R123R124R134aR22R404AR407AR407CR407FR407HR422BR422DR438AR507CR717 |
| Product Group | Switches and thermostats |
| Contact rating | AC15=3 A, 400 VAC1=10 A, 400 VDC13=12 W, 220 VAC3=4 A, 400 VLR=28 A, 400 V |
| Packing format | Multi pack |
| Reset function | Auto |
| Contact function | SPDT |
| Ammonia application | Yes |
| Enclosure rating IP | IP66 |
| Product accessories | Generic accessoriesSwitches accessories |
| Product description | Diff. Pressure Switch |
| Product family name | RT Pressure switch |
| Pressure Male/Female | Male |
| Electrical connection | Screwed cable entry |
| Pressure connection size | 12 x 1.5 |
| Pressure connection type | M |
| Electrical spec. standard | EN 60947-4/-5 |
| Max. test pressure [psig] | 681 psig |
| Pressure connection notes | Cutting ring 6mm tube |
| Contact differential [bar] | 0.5 bar |
| EN 60947 wiring properties | Flex, ferrules: 0.2-1.5 mm2Flex, no ferrules: 0.2-2.5 mm2Solid/stranded: 0.2-2.5 mm2 |
| Electrical connection size | 2xPg 13.5 |
| Max. Working Pressure [bar] | 42 bar |
| Max. test pressure [bar] Pe | 47 bar |
| Quantity per packing format | 9 pc |
| Electrical conn. Male/Female | Female |
| Max. Working Pressure [psig] | 609 psig |
| Pressure connection standard | ISO 8434-1 |
| Pressure range [bar] Pe [Max] | 31 bar |
| Pressure range [bar] Pe [Min] | -1 bar |
| EN 60947 electrical properties | Insulation: 400VPollution degree: 3Rated impulse voltage: 4 kVShort circuit prot, fuse: 10A |
| Electrical connection standard | DIN 40430 |
| Diff.press.setting range [MPa] [Max] | 1.1 MPa |
| Diff.press.setting range [MPa] [Min] | 0.15 MPa |
| Diff.press.setting range [bar] [Max] | 11 bar |
| Diff.press.setting range [bar] [Min] | 1.5 bar |
| Diff.press.setting range [psi] [Max] | 159 psi |
| Diff.press.setting range [psi] [Min] | 22 psi |
| Operat. range LP side [bar] Pe [Max] | 31 bar |
| Operat. range LP side [bar] Pe [Min] | -1 bar |
| Operat. range LP side [psig]Pe [Max] | 450 psig |
| Operat. range LP side [psig]Pe [Min] | -15 psig |
| Ambient temperature range [°C] [Max] | 70 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
Product Description
RT260A Diff. Pressure Switch M/9
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
