017D001366

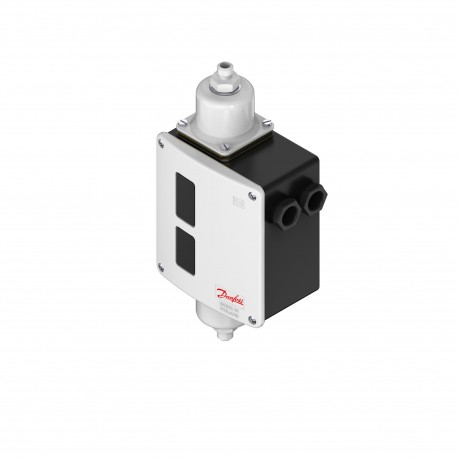

017D001366 DANFOSS REFRIGERATION Differential pressure switch
$0.00USD
3505 in stock
Key Specifications
EAN ():5702428042895
Type ():RT262A
Volume ():4.629 Liter
Approval ():CCCCEEACKRLVDPZHRINARMRSRoHSRoHS ChinaTYSKCMIMLLC CDC EURO-TYSKUKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428042895 |
| Type () | RT262A |
| Volume () | 4.629 Liter |
| Approval () | CCCCEEACKRLVDPZHRINARMRSRoHSRoHS ChinaTYSKCMIMLLC CDC EURO-TYSKUKCA |
| Net weight () | 0.962 Kg |
| Serviceable () | Contact systems |
| Gross weight () | 1.24 Kg |
| Refrigerants () | R11R12R123R124R134aR22R404AR407AR407CR407FR407HR422BR422DR438AR507CR717 |
| Product group () | Switches and thermostats |
| Contact rating () | AC15=3 A, 400 VAC1=10 A, 400 VDC13=12 W, 220 VAC3=4 A, 400 VLR=28 A, 400 V |
| Packing format () | Multi pack |
| Reset function () | Auto |
| Contact function () | SPDT+SPST |
| SCIP dossier no. () | 54f3e4b2-77e8-4825-a1c1-c3d5ba584171 |
| EU RoHS compliance () | Yes |
| Enclosure rating IP () | IP66 |
| Product accessories () | Generic accessoriesSwitches accessories |
| Product description () | Diff. Pressure Switch |
| Pressure Male/Female () | Male |
| Electrical connection () | Screwed cable entry |
| Relay release time [s] () | 0 s |
| Pressure connection size () | 12 x 1.5 |
| Pressure connection type () | M |
| Product Name Description () | Differential pressure switch |
| UL approved refrigerants () | R11R12R123R124R134aR22R404AR407AR407CR407FR407HR422BR422DR438AR507C |
| Electrical spec. standard () | EN 60947-4/-5 |
| Max. test pressure [psig] () | 188 psig |
| Pressure connection notes () | Cutting ring 6mm tube |
| Contact differential [bar] () | 0.1 bar |
| EN 60947 wiring properties () | Flex, ferrules: 0.2-1.5 mm2Flex, no ferrules: 0.2-2.5 mm2Solid/stranded: 0.2-2.5 mm2 |
| Electrical connection size () | 2xPg 13.5 |
| Max. Working Pressure [bar] () | 11 bar |
| Max. test pressure [bar] Pe () | 13 bar |
| Quantity per packing format () | 9 pc |
| Electrical conn. Male/Female () | Female |
| Max. Working Pressure [psig] () | 160 psig |
| Pressure connection standard () | ISO 8434-1 |
| Pressure range [bar] Pe [max] () | 9 bar |
| Pressure range [bar] Pe [min] () | -1 bar |
| EN 60947 electrical properties () | Pollution degree: 3Rated impulse voltage: 4 kVShort circuit prot, fuse: 10AInsulation: 400V |
| Electrical connection standard () | DIN 40430 |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Diff.press.setting range [MPa] [max] () | 0.15 MPa |
| Diff.press.setting range [MPa] [min] () | 0.01 MPa |
| Diff.press.setting range [bar] [max] () | 1.5 bar |
| Diff.press.setting range [bar] [min] () | 0.1 bar |
| Diff.press.setting range [psi] [max] () | 22 psi |
| Diff.press.setting range [psi] [min] () | 1.5 psi |
| Operat. range LP side [bar] Pe [max] () | 9 bar |
| Operat. range LP side [bar] Pe [min] () | -1 bar |
| Operat. range LP side [psig]Pe [max] () | 131 psig |
| Operat. range LP side [psig]Pe [min] () | -15 psig |
| Ambient temperature range [°C] [max] () | 70 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 158 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
RT262A Diff. Pressure Switch M/9
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Diff.press.setting range [bar]: 0.10 - 1.50, Reset function: Auto, Pressure connection type: M, Pressure connection size: 12 x 1.5, Enclosure rating IP: IP66, Max. Working Pressure [bar]: 11.0
