017B0017

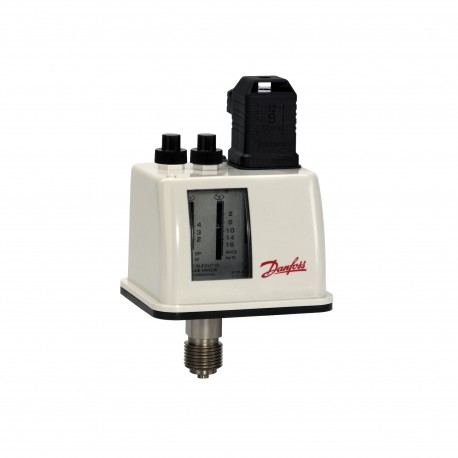

017B0017 DANFOSS CONTROLES INDUSTRIALES Pressure switch
$0.00USD
3663 in stock
Key Specifications
EAN:5702423265336
Approval:CEPED
Net weight:0.51 Kg
Serviceable:No
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702423265336 |
| Approval | CEPED |
| Net weight | 0.51 Kg |
| Serviceable | No |
| Gross weight | 0.63 Kg |
| Product name | Pressure switch |
| Product type | BCP5 |
| Product Group | Switches and thermostats |
| Contact rating | AC15=2 A, 250 VAC1=10 A, 250 VDC13=50 W, 250 V |
| Packing format | Multi pack |
| Reset function | Auto |
| Contact function | SPDT |
| Contact load type | B |
| Approval file name | CE-0062-PED-H-DMC 001-17-CHN |
| Enclosure rating IP | IP65 |
| Product description | Pressure Switch |
| Burst pressure [bar] | 48 bar |
| Pressure Male/Female | Male |
| Electrical connection | DIN-plug |
| Differential [bar] [Max] | 3.2 bar |
| Differential [bar] [Min] | 2 bar |
| Differential [psi] [Max] | 46.4 psi |
| Differential [psi] [Min] | 29 psi |
| Pressure connection size | 1/2 |
| Pressure connection type | G |
| Electrical spec. standard | EN 60947-4/-5 |
| Max. test pressure [psig] | 511 psig |
| Electrical connection size | Pg 11 |
| Max. Working Pressure [bar] | 32 bar |
| Max. test pressure [bar] Pe | 35.2 bar |
| Quantity per packing format | 9 pc |
| Electrical conn. Male/Female | Female |
| Max. Working Pressure [psig] | 465 psig |
| Pressure connection standard | ISO 228-1 |
| Electrical connection standard | EN 175301-803 |
| Regulation range [bar] Pe [Max] | 16 bar |
| Regulation range [bar] Pe [Min] | 2 bar |
| Regulation range [psig] Pe [Max] | 231.06 psig |
| Regulation range [psig] Pe [Min] | 29 psig |
| Ambient temperature range [°C] [Max] | 70 °C |
| Ambient temperature range [°C] [Min] | -20 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -4 °F |
