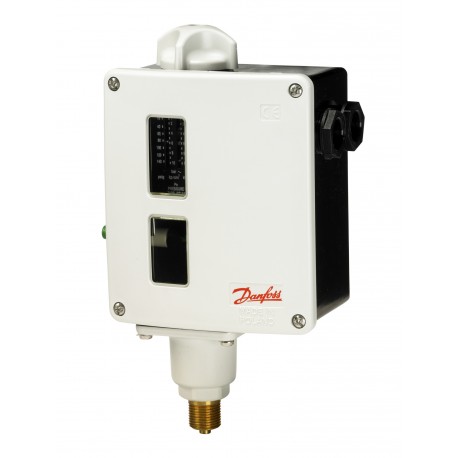

017-520366 DANFOSS REFRIGERATION Pressure switch
$0.00USD
3139 in stock
Key Specifications
EAN ():5702423120604
Type ():RT116
Volume ():2.726 Liter
Approval ():BVCCCCEDNVEACGLKRLRLVDNKKPZHRINARMRSRoHSRoHS ChinaTYSKCMIMLLC CDC EURO-TYSKUKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423120604 |
| Type () | RT116 |
| Volume () | 2.726 Liter |
| Approval () | BVCCCCEDNVEACGLKRLRLVDNKKPZHRINARMRSRoHSRoHS ChinaTYSKCMIMLLC CDC EURO-TYSKUKCA |
| Net weight () | 0.888 Kg |
| Serviceable () | Contact systems |
| Gross weight () | 0.984 Kg |
| Product group () | Switches and thermostats |
| Contact rating () | AC15=3 A, 400 VAC1=10 A, 400 VDC13=12 W, 220 VAC3=4 A, 400 VLR=28 A, 400 V |
| Packing format () | Multi pack |
| Reset function () | Auto |
| Contact function () | SPDT |
| SCIP dossier no. () | 54f3e4b2-77e8-4825-a1c1-c3d5ba584171 |
| EU RoHS compliance () | Yes |
| Enclosure rating IP () | IP66 |
| Product accessories () | Switches accessories |
| Product description () | Pressure Switch |
| Pressure Male/Female () | Male |
| Electrical connection () | Screwed cable entry |
| Differential [bar] [max] () | 1.3 bar |
| Differential [bar] [min] () | 0.33 bar |
| Differential [psi] [max] () | 18.9 psi |
| Differential [psi] [min] () | 4.8 psi |
| Pressure connection size () | 3/8 |
| Pressure connection type () | G |
| Pressure sensing element () | Bellows |
| Product Name Description () | Pressure switch |
| Electrical spec. standard () | EN 60947-4/-5 |
| Max. test pressure [psig] () | 363 psig |
| EN 60947 wiring properties () | Flex, ferrules: 0.2-1.5 mm2Flex, no ferrules: 0.2-2.5 mm2Solid/stranded: 0.2-2.5 mm2 |
| Electrical connection size () | 2xPg 13.5 |
| Max. Working Pressure [bar] () | 22 bar |
| Max. test pressure [bar] Pe () | 25 bar |
| Quantity per packing format () | 15 pc |
| Electrical conn. Male/Female () | Female |
| Max. Working Pressure [psig] () | 320 psig |
| Pressure connection standard () | ISO 228-1 |
| EN 60947 electrical properties () | Pollution degree: 3Rated impulse voltage: 4 kVShort circuit prot, fuse: 10AInsulation: 400V |
| Electrical connection standard () | DIN 40430 |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Regulation range [bar] Pe [max] () | 10 bar |
| Regulation range [bar] Pe [min] () | 1 bar |
| Regulation range [psig] Pe [max] () | 145 psig |
| Regulation range [psig] Pe [min] () | 14.5 psig |
| Ambient temperature range [°C] [max] () | 70 °C |
| Ambient temperature range [°C] [min] () | -50 °C |
| Ambient temperature range [°F] [max] () | 158 °F |
| Ambient temperature range [°F] [min] () | -58 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
RT116 Pressure Switch M/15
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Regulation range [bar] Pe: 1.00 - 10.00, Differential [bar]: 0.33 - 1.30, Contact function: SPDT, Reset function: Auto, Pressure connection type: G, Pressure connection size: 3/8, Pressure Male/Female: Male, Enclosure rating IP: IP66, Max. Working Pressure [bar]: 22.0
