In Stock Hot Product
017-519766

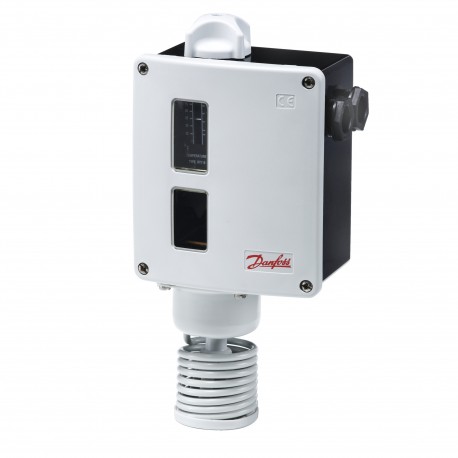

017-519766 DANFOSS REFRIGERATION Thermostat
$0.00USD
4002 in stock
Key Specifications
EAN ():5702423120567
Type ():RT115
Volume ():2.761 Liter
Approval ():CCCCEEACLVDPZHRMRSRoHSRoHS ChinaTYSKLLC CDC EURO-TYSKUKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423120567 |
| Type () | RT115 |
| Volume () | 2.761 Liter |
| Approval () | CCCCEEACLVDPZHRMRSRoHSRoHS ChinaTYSKLLC CDC EURO-TYSKUKCA |
| Net weight () | 0.868 Kg |
| Charge type () | Adsorption |
| Sensor type () | Room sensor |
| Serviceable () | Contact systems |
| Gross weight () | 0.98 Kg |
| Product group () | Switches and thermostats |
| Contact rating () | AC15=3 A, 400 VAC1=10 A, 400 VDC13=12 W, 220 VAC3=4 A, 400 VLR=28 A, 400 V |
| Packing format () | Multi pack |
| Reset function () | Auto |
| Contact function () | SPDT |
| SCIP dossier no. () | c4c20ce6-4a07-4caa-9394-1e7d8b13ffec |
| Differential type () | Fixed |
| EU RoHS compliance () | Yes |
| Enclosure rating IP () | IP66 |
| Product accessories () | Switches accessories |
| Product description () | Thermostat |
| Electrical connection () | Screwed cable entry |
| Product Name Description () | Thermostat |
| Electrical spec. standard () | EN 60947-4/-5 |
| EN 60947 wiring properties () | Flex, ferrules: 0.2-1.5 mm2Flex, no ferrules: 0.2-2.5 mm2Solid/stranded: 0.2-2.5 mm2 |
| Electrical connection size () | 2xPg 13.5 |
| Quantity per packing format () | 15 pc |
| Electrical conn. Male/Female () | Female |
| Max. sensor temperature [°C] () | 92 °C |
| Max. sensor temperature [°F] () | 198 °F |
| Temperature range [°C] [max] () | 35 °C |
| Temperature range [°C] [min] () | 10 °C |
| Temperature range [°F] [max] () | 95 °F |
| Temperature range [°F] [min] () | 50 °F |
| EN 60947 electrical properties () | Pollution degree: 3Rated impulse voltage: 4 kVShort circuit prot, fuse: 10AInsulation: 400V |
| Electrical connection standard () | DIN 40430 |
| Diff. @ Max. range setting[°C] () | 1.8 °C |
| Diff. @ Min. range setting[°C] () | 1.8 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Ambient temperature range [°C] [max] () | 70 °C |
| Ambient temperature range [°C] [min] () | -50 °C |
| Ambient temperature range [°F] [max] () | 158 °F |
| Ambient temperature range [°F] [min] () | -58 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
RT115 Thermostat M/15
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Temperature range [°C]: 10 - 35, Reset function: Auto, Contact function: SPDT, Sensor type: Room sensor, Enclosure rating IP: IP66
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
