015D0007

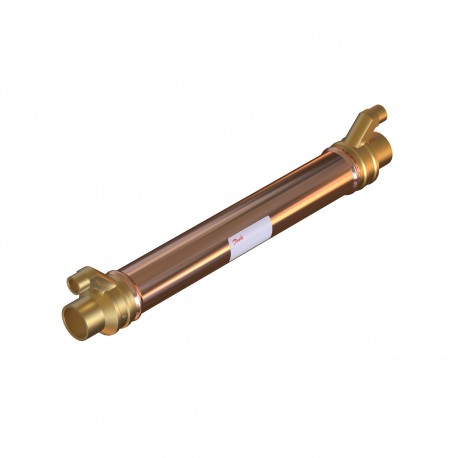

015D0007 DANFOSS REFRIGERATION Tube-in-tube heat exchanger
$0.00USD
4089 in stock
Key Specifications
EAN ():5702422046981
Type ():HE 4.0
Volume ():1.601 Liter
Approval ():EACLLC CDC TYSKRoHSRoHS China
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702422046981 |
| Type () | HE 4.0 |
| Volume () | 1.601 Liter |
| Approval () | EACLLC CDC TYSKRoHSRoHS China |
| Net weight () | 1.563 Kg |
| Serviceable () | No |
| Gross weight () | 1.586 Kg |
| Refrigerants () | R134aR22R404AR407AR407CR407FR422BR422DR448AR449AR450AR452AR507AR513AR407HR449B |
| Product group () | Heat exchangers |
| Packing format () | Multi pack |
| Inlet size [mm] () | 28 mm |
| Outlet size [mm] () | 12 mm |
| SCIP dossier no. () | 97d6c0ce-2269-4906-b867-15c82d66a06e |
| EU RoHS compliance () | No - out of scope |
| Product accessories () | No |
| Inlet connection type () | Solder, ODF |
| Oil free refrigerants () | R513A |
| Outlet connection type () | Solder, ODF |
| Lubricants compatibility () | Oilfree applications |
| Max. test pressure [bar] () | 40 bar |
| Product Name Description () | Tube-in-tube heat exchanger |
| Max. test pressure [psig] () | 580 psig |
| Max. Working Pressure [bar] () | 28 bar |
| Quantity per packing format () | 10 pc |
| Max. Working Pressure [psig] () | 400 psig |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Medium temperature range [°C] [max] () | 120 °C |
| Medium temperature range [°C] [min] () | -60 °C |
| Medium temperature range [°F] [max] () | 248 °F |
| Medium temperature range [°F] [min] () | -76 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
HE 4.0 Heat Exchanger M/10
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Solder, ODF, Max. Working Pressure [bar]: 28.0
