In Stock Hot Product
014U0455

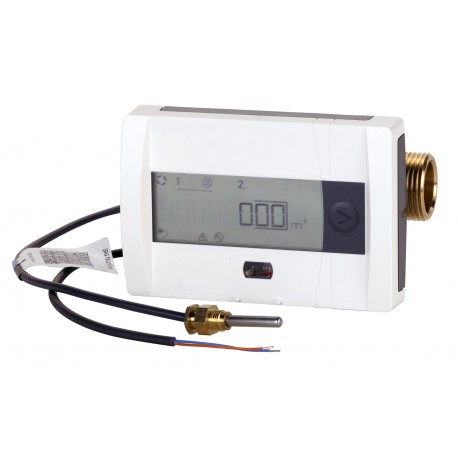

014U0455 DANFOSS HEATING DN20R,qp2.5,130,Mbus,H,EU,kWh,MP
$0.00USD
3869 in stock
Key Specifications
EAN ():5702425241321
Type ():SonoSelect 10
Media ():Water quality with pH 7 to 9.5
Volume ():3.191 Liter
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702425241321 |
| Type () | SonoSelect 10 |
| Media () | Water quality with pH 7 to 9.5 |
| Volume () | 3.191 Liter |
| Net weight () | 0.8 Kilogram |
| qc [m³/h] () | 0.005 m³/h |
| qi [m³/h] () | 0.025 m³/h |
| qp [m³/h] () | 2.5 m³/h |
| qs [m³/h] () | 5 m³/h |
| Application () | Heating |
| Battery qty () | 2 |
| Description () | Energy meter for residential applications |
| Energy unit () | kWh (without digit after comma) |
| Length [mm] () | 130 mm |
| qss [m³/h] () | 5.5 m³/h |
| Display type () | LCD |
| EEE category () | 5 small equipment (any external dimension50 cm) |
| Gross weight () | 1.047 Kilogram |
| Installation () | Return |
| Ambient class () | E1 / M2 |
| Diameter [mm] () | 20 mm |
| Housing color () | RAL 9010 White |
| Product group () | Energy meters |
| Connection size () | G 1 |
| Connection types () | Thread |
| In scope of WEEE () | Yes |
| SCIP dossier no. () | c284e070-c802-4ced-837c-2aa2fcd3510f |
| Accuracy standard () | Class 2 to EN1434 |
| Approval authority () | Force Certification |
| Commissioning tool () | SonoApp |
| EU RoHS compliance () | Out of scope |
| Kvs values [m³/h] () | 6.25 m³/h |
| UK RoHS compliance () | Out of scope |
| IP protection class () | IP65 |
| Supply voltage type () | mains |
| Battery type or Name () | Sold without batteries |
| China RoHS compliance () | Out of scope |
| Pressure nominal [bar] () | 25 bar |
| Interface module slot 1 () | No interface module |
| Flow measuring principle () | Ultrasonic |
| Integrated communication () | M-Bus |
| Temperature sensors type () | Pt 1000 |
| Cable insulation material () | PUR |
| SCIP dossier product name () | Ultrasonic Pathfinder |
| Protection class calculator () | IP65 |
| Log storage duration [Month] () | 24 mo |
| Log storage interval [Month] () | 1 mo |
| Ambient humidity [% RH] [Max] () | 95 % |
| Media temperature [°C] [Max] () | 95 °C |
| Media temperature [°C] [Min] () | 5 °C |
| Ambient temperature [°C] [max] () | 55 °C |
| Ambient temperature [°C] [min] () | 5 °C |
| Material in contact with medium () | Brass sensor |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Storage temperature [°C] [Max] () | 60 °C |
| Storage temperature [°C] [Min] () | -25 °C |
| Temperature sensor diameter [mm] () | 5.2 mm |
| Temperature sensors cable length [m] () | 1.5 m |
| Approved meteorological range [°C] [Max] () | 95 °C |
| Approved meteorological range [°C] [Min] () | 5 °C |
| Temperature limits (accounting) [°C] [Max] () | 105 °C |
| Temperature limits (accounting) [°C] [Min] () | 0 °C |
| Cable length between calculator and flow sensor [m] () | 1.5 m |
| Difference temperature limits (Accounting) [K] [Max] () | 90 K |
| Difference temperature limits (Accounting) [K] [Min] () | 3 K |
Product Description
Energy meters, SonoSelect 10, 20 mm, qp [m³/h]: 2.5, Heating, mains, M-Bus, No interface module
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Energy meter for residential applications
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
