In Stock Hot Product
014U0430

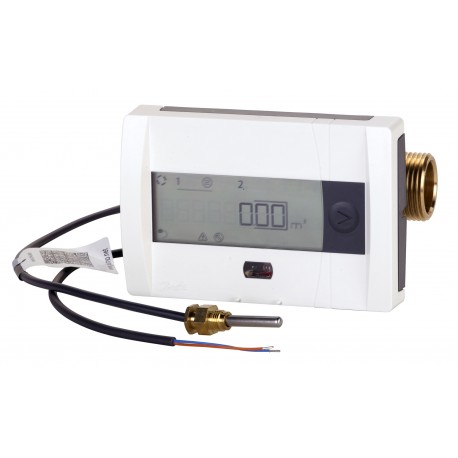

014U0430 DANFOSS HEATING DN25S,qp6.0,260,MBus,H,130C,EU,kWh
$0.00USD
4069 in stock
Key Specifications
EAN ():5702425238314
Type ():SonoSelect 10
Media ():Water quality with pH 7 to 9.5
Volume ():6.344 Liter
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702425238314 |
| Type () | SonoSelect 10 |
| Media () | Water quality with pH 7 to 9.5 |
| Volume () | 6.344 Liter |
| Net weight () | 1.465 Kilogram |
| qc [m³/h] () | 0.012 m³/h |
| qi [m³/h] () | 0.06 m³/h |
| qp [m³/h] () | 6 m³/h |
| qs [m³/h] () | 12 m³/h |
| Application () | Heating |
| Battery qty () | 2 |
| Description () | Energy meter for residential applications |
| Energy unit () | kWh (without digit after comma) |
| Length [mm] () | 260 mm |
| qss [m³/h] () | 12.3 m³/h |
| Display type () | LCD |
| EEE category () | 5 small equipment (any external dimension50 cm) |
| Gross weight () | 1.825 Kilogram |
| Installation () | Supply |
| Ambient class () | E1 / M2 |
| Diameter [mm] () | 25 mm |
| Housing color () | RAL 9010 White |
| Product group () | Energy meters |
| Connection size () | G 1 1/4 B |
| Connection types () | Thread |
| In scope of WEEE () | Yes |
| SCIP dossier no. () | c284e070-c802-4ced-837c-2aa2fcd3510f |
| Accuracy standard () | Class 2 to EN1434 |
| Approval authority () | Force Certification |
| Commissioning tool () | SonoApp |
| EU RoHS compliance () | Out of scope |
| Kvs values [m³/h] () | 12.79 m³/h |
| UK RoHS compliance () | Out of scope |
| Weight per battery () | 18 g |
| IP protection class () | IP65 |
| Supply voltage type () | battery 2 x AA-cell |
| Battery type or Name () | AA Lithium |
| China RoHS compliance () | Out of scope |
| Supply voltage [V] DC () | 4 V |
| Pressure nominal [bar] () | 25 bar |
| Interface module slot 1 () | No interface module |
| Battery lifetime [Years] () | 16 yr |
| Flow measuring principle () | Ultrasonic |
| Integrated communication () | M-Bus |
| Temperature sensors type () | Pt 1000 |
| Cable insulation material () | Silicone |
| SCIP dossier product name () | Ultrasonic Pathfinder |
| 1 Primary battery weight Kg () | 0.018 |
| Protection class calculator () | IP65 |
| Log storage duration [Month] () | 24 mo |
| Log storage interval [Month] () | 1 mo |
| Ambient humidity [% RH] [Max] () | 95 % |
| Media temperature [°C] [Max] () | 130 °C |
| Media temperature [°C] [Min] () | 5 °C |
| 1 Primary battery SUM weight Kg () | 0.036 |
| Ambient temperature [°C] [max] () | 55 °C |
| Ambient temperature [°C] [min] () | 5 °C |
| Material in contact with medium () | Brass sensor |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Storage temperature [°C] [Max] () | 60 °C |
| Storage temperature [°C] [Min] () | -25 °C |
| Temperature sensor diameter [mm] () | 5.2 mm |
| Temperature sensors cable length [m] () | 1.5 m |
| In scope of WEEE and contain batteries () | Yes |
| Approved meteorological range [°C] [Max] () | 130 °C |
| Approved meteorological range [°C] [Min] () | 5 °C |
| Temperature limits (accounting) [°C] [Max] () | 140 °C |
| Temperature limits (accounting) [°C] [Min] () | 0 °C |
| Cable length between calculator and flow sensor [m] () | 1.5 m |
| Difference temperature limits (Accounting) [K] [Max] () | 125 K |
| Difference temperature limits (Accounting) [K] [Min] () | 3 K |
Product Description
Energy meters, SonoSelect 10, 25 mm, qp [m³/h]: 6.0, Heating, battery 2 x AA-cell, M-Bus, No interface module
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Energy meter for residential applications
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
